Engine Coolant Temperature Sensor (G1885343): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the left air cleaner.
Refer to: LEFT AIR CLEANER
Partially drain the coolant from the engine.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING (G2131524) .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

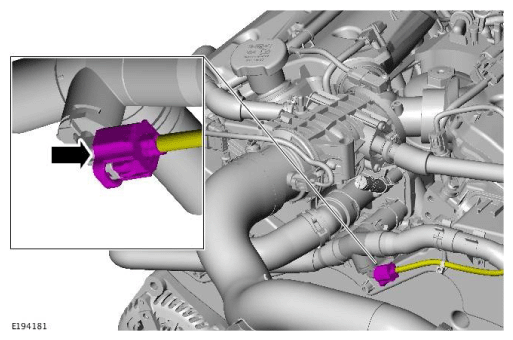

Disconnect the electrical connector.
CAUTION: Be prepared to collect escaping coolant.

NOTE: Inspect the O-ring, replace if damaged or worn.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

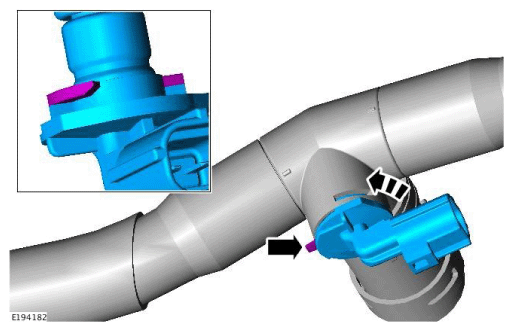

Release the engine coolant temperature sensor retaining clip.
