Engine Coolant Temperature Sensor (G1885343): Installation

WARNING: This page is about a different variant/trim than selected.
  1. CAUTION: Make sure that the area around the component is clean and free of foreign material.

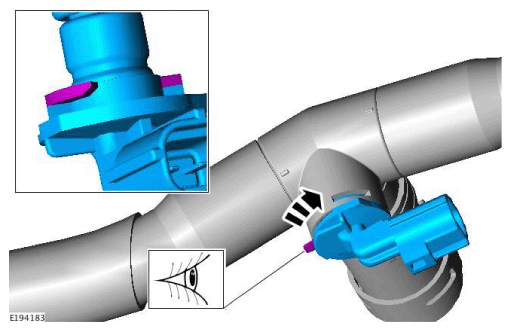

    G12010636Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Secure the engine coolant temperature sensor retaining clip.

  2. G12010634Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the electrical connector.

  3. Fill the cooling system.

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING

  4. Install the left air cleaner.

    Refer to: LEFT AIR CLEANER
