Fuel Pump Module
WARNING: This page is about a different variant/trim than selected.

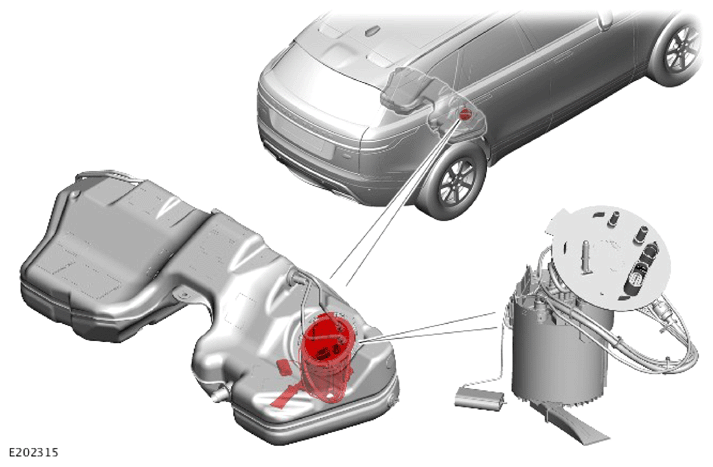

The fuel pump module is located in the right side of the tank.
The top flange of the fuel pump module assembly provides the internal and external interface for the tank electrical and fuel connections.
The fuel level sensor signals are converted into Controller Area Network (CAN) bus messages by the Body Control Module/Gateway Module (BCM/GWM) assembly and are used by the instrument cluster for fuel gauge and fuel warning indicator operation. The sensor signals are also monitored by the Powertrain Control Module (PCM) to store On-Board Diagnostics (OBD) P codes for mis-fire detection when the fuel level is below a predetermined capacity.
For additional information, refer to: FUEL TANK AND LINES
