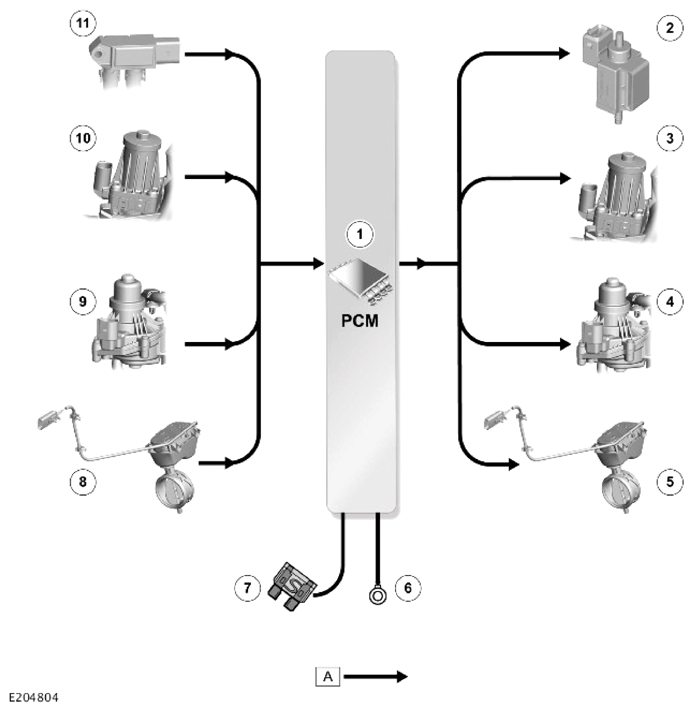

Control Diagram - 4 Of 4 - Exhaust Gas RECIRCULATION System
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | High Pressure (HP) Exhaust Gas Recirculation (EGR) cooler bypass valve Electronic Vacuum Regulating Valve (EVRV) |
| 3 | HP EGR valve motor |
| 4 | Low Pressure (LP) EGR valve motor |
| 5 | Exhaust pressure control valve actuator |
| 6 | Ground |
| 7 | Power supply |
| 8 | Exhaust pressure control valve actuator position sensor |
| 9 | LP EGR valve position sensor |
| 10 | HP EGR valve position sensor |
| 11 | Differential pressure sensor - LP EGR valve |
