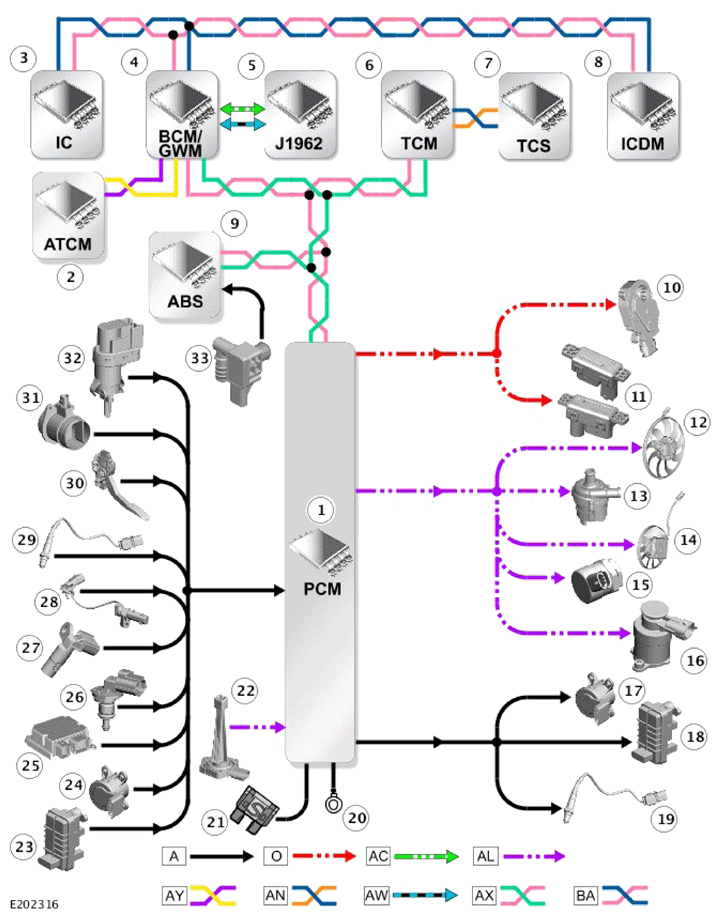

Control Diagram - 1 Of 4
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN) BUS: AC = DIAGNOSTIC: AL = PULSE WIDTH MODULATION (PWM): AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS: AW = ETHERNET: AX = FLEXRAY: AY = HS CAN POWER MODE ZERO SYSTEMS BUS: BA = HS CAN HMI SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Automatic Temperature Control Module (ATCM) |
| 3 | Instrument Cluster (IC) |
| 4 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 5 | Diagnostic connector (J1962) |
| 6 | Transmission Control Module (TCM) |
| 7 | Transmission Control Switch (TCS) |
| 8 | Interactive Control Display Module (ICDM) |
| 9 | Anti-lock Brake System (ABS) control module |
| 10 | Active grille air shutter motor (If fitted) |
| 11 | Glow plug control modules A and B |
| 12 | Engine cooling fan control motor - Main |
| 13 | Charge air coolant pump |
| 14 | Engine cooling fan control motor - Auxiliary |
| 15 | Fuel pressure control valve |
| 16 | Fuel metering valve |
| 17 | Throttle actuator |
| 18 | Variable Geometry Turbocharger (VGT) vane actuator |
| 19 | Heated Oxygen sensor (HO2S) |
| 20 | Ground |
| 21 | Power supply |
| 22 | Oil level and temperature sensor |
| 23 | Variable Geometry Turbocharger (VGT) vane position sensor |
| 24 | Throttle Position Sensor (TPS) |
| 25 | Restraints Control Module (RCM) |
| 26 | Engine Coolant Temperature (ECT) sensor |
| 27 | Camshaft Position (CMP) sensor |
| 28 | Crankshaft Position (CKP) sensor |
| 29 | Heated Oxygen sensor (HO2S) |
| 30 | Accelerator Pedal Position (APP) sensor |
| 31 | Mass Air Flow and Temperature (MAFT) sensor |
| 32 | Brake pedal switch |
| 33 | Brake vacuum sensor |
