Component Location - 4 Of 8

WARNING: This page is about a different variant/trim than selected.

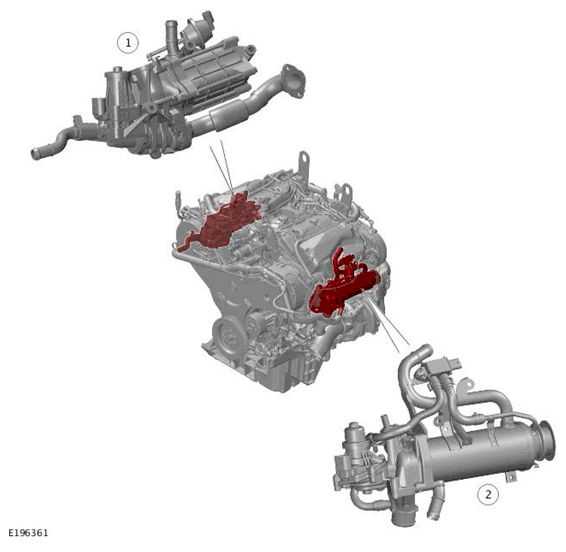

G11699177Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Right side High Pressure (HP) Exhaust Gas Recirculation (EGR) cooler and valve housing
2 Left side Low Pressure (LP) EGR cooler, valve housing and differential pressure sensor assembly
