Component Location - 3 Of 8
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

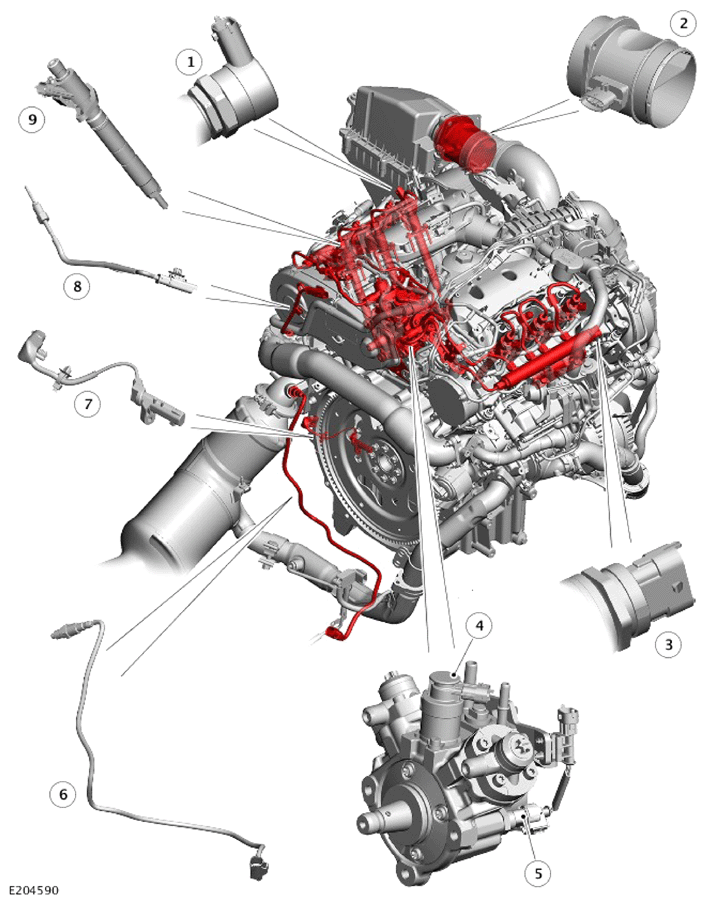

| ITEM |
DESCRIPTION |
| 1 |
Fuel pressure control valve |
| 2 |
Mass Air Flow and Temperature (MAFT) sensor |
| 3 |
Fuel Rail Pressure (FRP) sensor |
| 4 |
Fuel temperature sensor |
| 5 |
Fuel metering valve |
| 6 |
Heated Oxygen Sensor (HO2S) |
| 7 |
Crankshaft Position (CKP) sensor |
| 8 |
Exhaust gas temperature sensor |
| 9 |
Fuel injector (6 off) |
