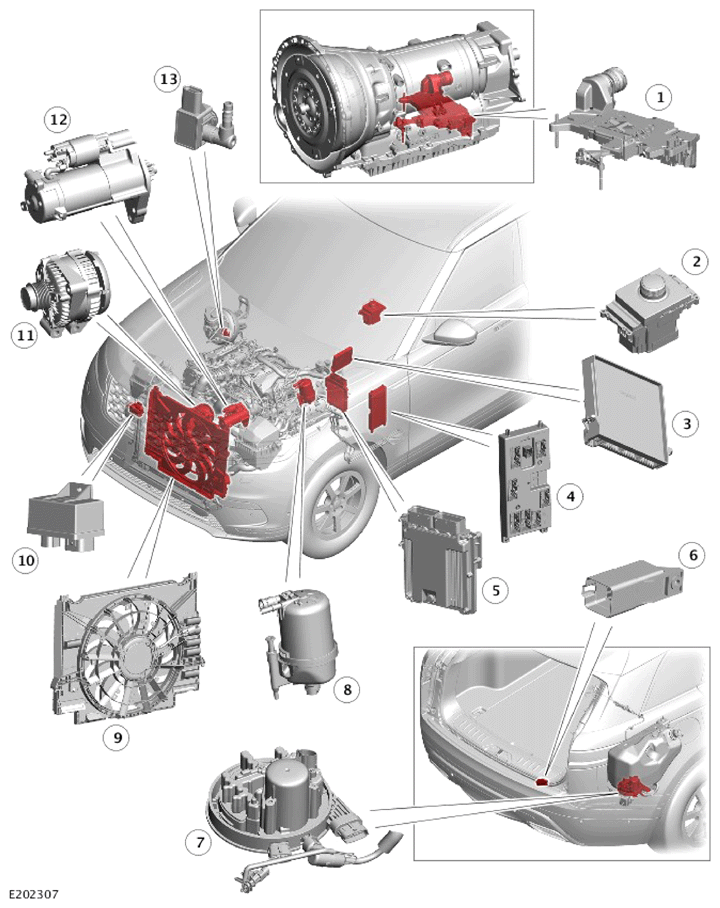

Component Location - 1 Of 8
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Transmission Control Module (TCM) |
| 2 | Transmission Control Switch (TCS) |
| 3 | Automatic Temperature Control Module (ATCM) |
| 4 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 5 | Powertrain Control Module (PCM) |
| 6 | Water In Fuel (WIF) sensor |
| 7 | Diesel Exhaust Fluid (DEF) tank module |
| 8 | DEF heater control unit |
| 9 | Engine cooling fan control module |
| 10 | Glow plug control module |
| 11 | Generator |
| 12 | Starter motor |
| 13 | Brake vacuum sensor |
