Twin Turbochargers

WARNING: This page is about a different variant/trim than selected.

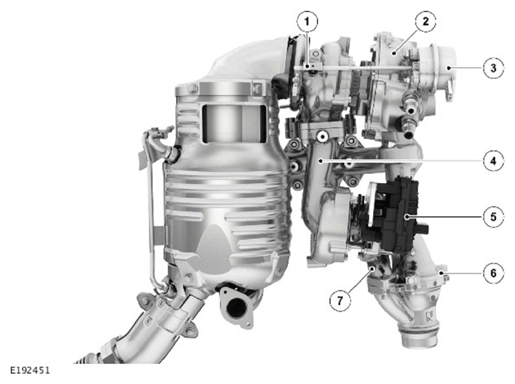

G12009147Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Wastegate flap
2 Low Pressure (LP) fixed geometry turbocharger
3 Wastegate actuator
4 High Pressure (HP) Variable Geometry Turbine (VGT) exhaust outlet
5 VGT actuator
6 Passive compressor bypass valve
7 HP VGT compressor outlet

Vacuum Controlled Actuators

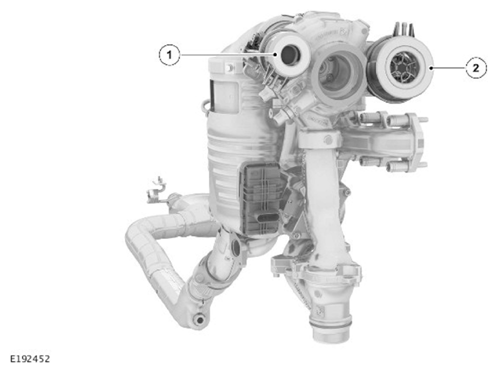

G12009148Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Wastegate actuator
2 Turbine Bypass Valve (TBV) actuator

There are 2 vacuum controlled actuators used within the series sequential system:

  1. The wastegate actuator is used to regulate the maximum boost pressure produced by the fixed compressor.
  2. The Turbine Bypass Valve (TBV) actuator is used to control the amount of boost which is provided by the fixed geometry turbocharger (balancing the operation of the series turbochargers).

Actuator Control Solenoids and Pipework

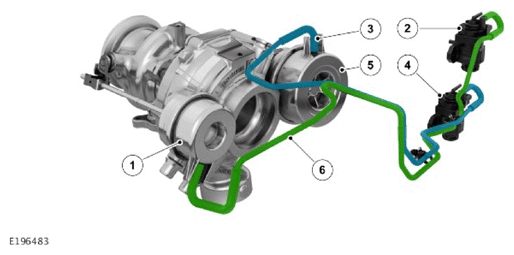

G12009149Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Wastegate control actuator
2 Wastegate control actuator solenoid
3 Turbine Bypass Valve (TBV) vacuum pipe
4 TBV solenoid
5 TBV actuator
6 TBV vacuum pipe

Both vacuum actuators are controlled by the Powertrain Control Module (PCM) via electrical solenoids located at the front of the engine. A Pulse Width Modulation (PWM) signal on the negative wire is used to actuate the solenoids. A scope can be used to capture the signal from the PCM.

Both actuators are spring loaded holding the components in the open position and vacuum controlled in the closed position. This allows both actuators to operate in a fail-safe position if there are any electrical or vacuum issues.

Vacuum System Schematic Diagram

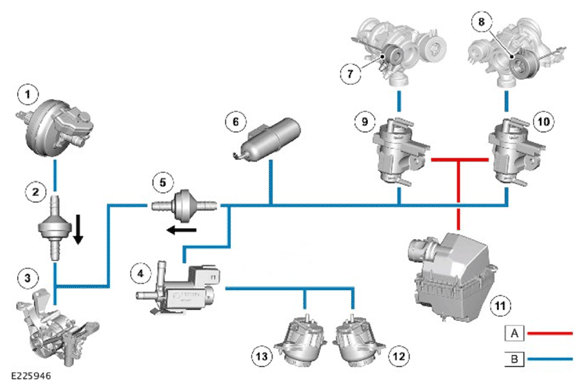

G12009150Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
A Vacuum vent hose
B Vacuum supply hose
1 Brake booster
2 Non return valve
3 Variable flow oil pump with integral vacuum pump
4 Active engine mount solenoid
5 Non return valve
6 Vacuum reservoir
7 Wastegate control actuator
8 Turbine Bypass Valve (TBV) actuator
9 Wastegate control actuator solenoid
10 Turbine Bypass Valve (TBV) solenoid
11 Air filter housing
12 Right active engine mount
13 Left active engine mount
