Variable Camshaft Timing Solenoid (G2415554): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.

If this component is being renewed because of a customer complaint, make sure to follow the electronic engine control system 'Diagnosis and Testing' procedure.
Refer to: ELECTRONIC ENGINE CONTROLS
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

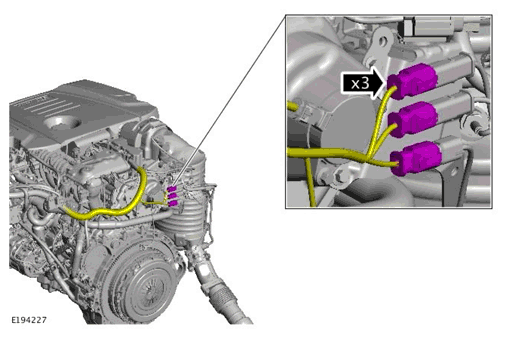

Disconnect the 3 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

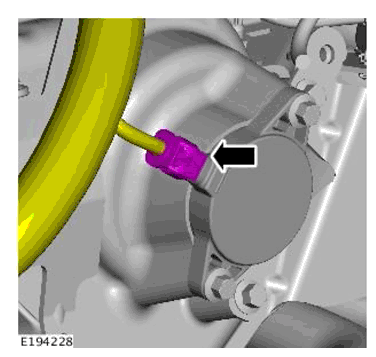

Disconnect the electrical connector from the Variable Camshaft Timing (VCT) solenoid.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

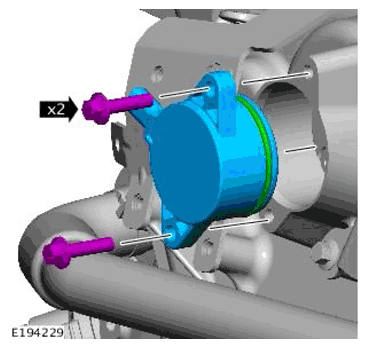

- Remove the 2 bolts.
- Remove the VCT solenoid.
- Examine the O-ring seal replace if damaged or worn.
