Post DPF Exhaust Gas Temperature Sensor (G1851722): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe due care when working near a hot exhaust system.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

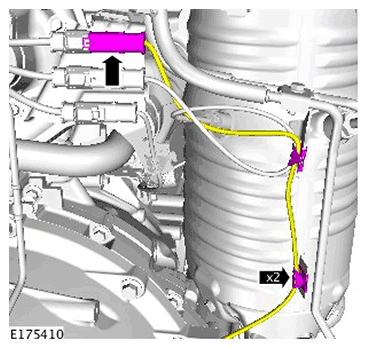

Disconnect and release the post Diesel Particulate Filter (DPF) exhaust gas temperature sensor wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

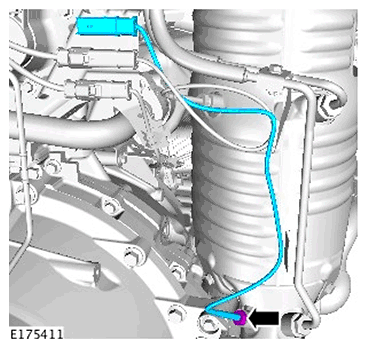

Remove the post DPF exhaust gas temperature sensor.
