Exhaust Gas Pressure Sensor (G2454414): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS
Remove the catalytic converter.
Refer to: CATALYTIC CONVERTER - VEHICLES WITH: NAS SPECIFICATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

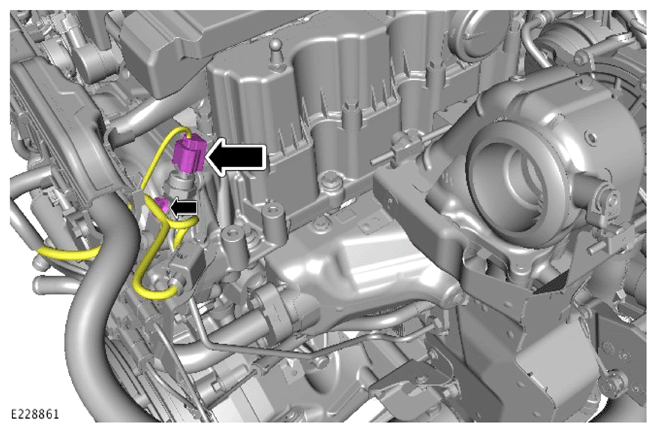

- Disconnect the exhaust gas pressure sensor electrical connector.
- Release the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Loosen the exhaust gas pressure sensor nut.
- Remove the bolt.
- Remove the exhaust gas pressure sensor.
