Diesel Exhaust Fluid Heater Control (G2207005): Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the startup battery ground cable.

    Refer to: SPECIFICATIONS

  2. Remove the loadspace trim scuff panel.

    Refer to: LOADSPACE SCUFF PLATE TRIM PANEL

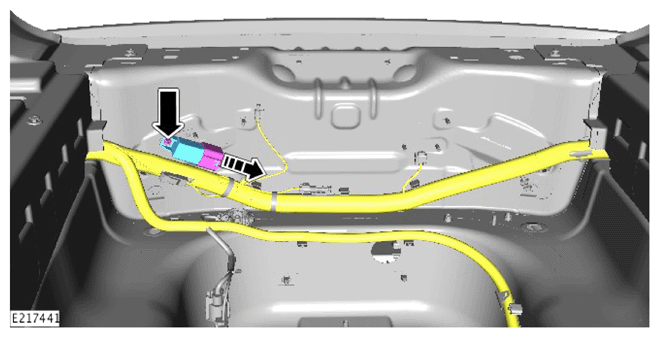

  3. G14289583Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Remove the retaining bolt.
    • Remove the diesel exhaust fluid heater control.
