Clutch Pedal Position Sensor (G1917374): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: INSTRUMENT PANEL LOWER TRIM PANEL

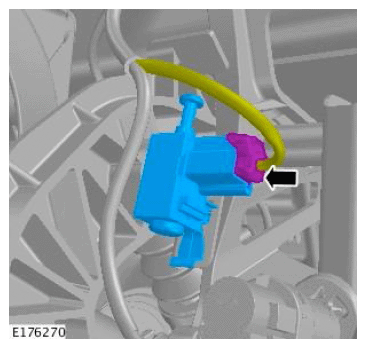

  2. G11734200Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

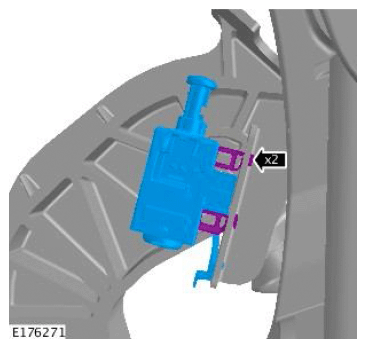

  3. G11734201Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
