Cylinder Head Temperature Sensor
WARNING: This page is about a different variant/trim than selected.

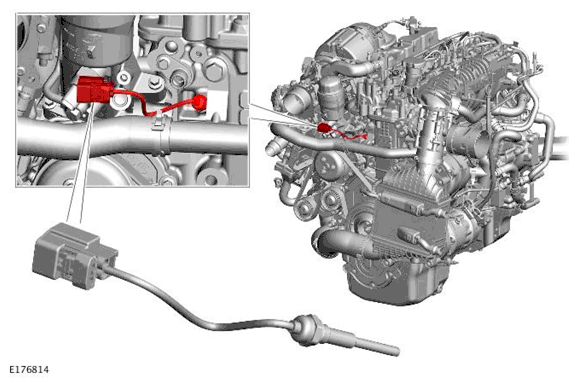

The cylinder head temperature sensor is located in a threaded boss in the front of the cylinder head, adjacent to the oil filter housing and the cylinder head coolant outlet pipe.
The sensor is a Negative Temperature Coefficient (NTC) sensor with a two pin connection:
- One pin receives a reference voltage from the Powertrain Control Module (PCM).
- The second pin provides a signal feedback to the PCM.
