Cylinder Block Temperature Sensor
WARNING: This page is about a different variant/trim than selected.

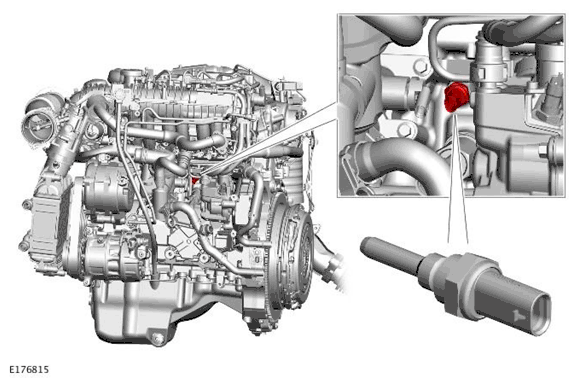

The cylinder block temperature sensor is located in a threaded boss on the left side of the cylinder block, between the electric thermostat housing and the High Pressure (HP) fuel pump.
The sensor is a Negative Temperature Coefficient (NTC) sensor with a two pin connection:
- One pin receives a 5V reference voltage from the Powertrain Control Module (PCM).
- The second pin provides a signal feedback to the PCM.
