Charge Air Cooler Temperature Sensor
WARNING: This page is about a different variant/trim than selected.

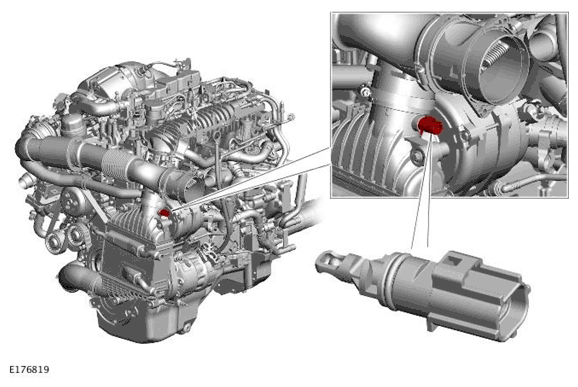

The charge air cooler temperature sensor is located in the outlet of the charge air cooler. The sensor is a quick fit component which is pushed into the charge air cooler port and rotated through 90° to lock. An O-ring seal fitted to the charge air cooler temperature sensor prevents leakage.
The temperature sensor is an Negative Temperature Coefficient (NTC) type sensor which receives a reference voltage from the Powertrain Control Module (PCM) and returns a signal proportional to the intake air temperature.
