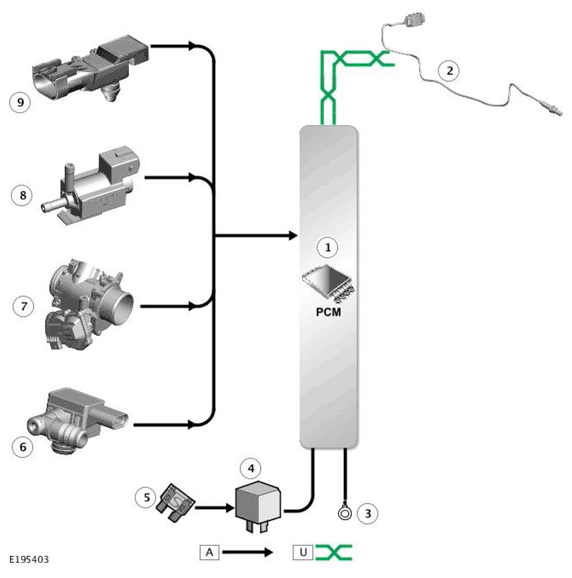

Control Diagram - 7 Of 7
WARNING: This page is about a different variant/trim than selected.
A= HARDWIRED: U= PRIVATE BUS
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Post Selective Catalyst Reduction (SCR) soot sensor and module |
| 3 | Ground |
| 4 | PCM Relay - Located in Engine Junction Box (EJB) |
| 5 | Fuse - Located in EJB |
| 6 | Brake vacuum sensor |
| 7 | Low Pressure (LP) Exhaust Gas Recirculation (EGR) pressure sensor |
| 8 | Active engine mount solenoid |
| 9 | Crankcase pressure sensor |
