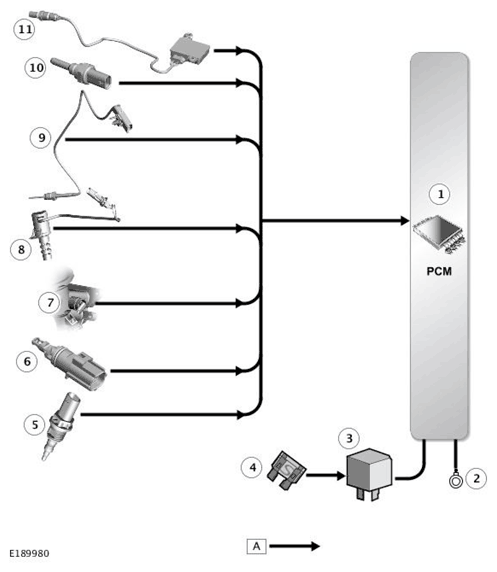

Control Diagram - 6 Of 7
WARNING: This page is about a different variant/trim than selected.
A= HARDWIRED
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Ground |
| 3 | PCM relay - Located in Engine Junction Box (EJB) |
| 4 | Fuse - Located in EJB |
| 5 | Charge air temperature sensor - High Pressure (HP) Exhaust Gas Recirculation (EGR) cooler outlet |
| 6 | Charge air cooler temperature sensor |
| 7 | Engine Coolant Temperature (ECT) sensor - Electric thermostat housing |
| 8 | Oil pressure control solenoid |
| 9 | Exhaust gas temperature sensor - Post catalytic converter |
| 10 | Cylinder block temperature sensor |
| 11 | Post Selective Catalyst Reduction (SCR) NOx sensor and module |
