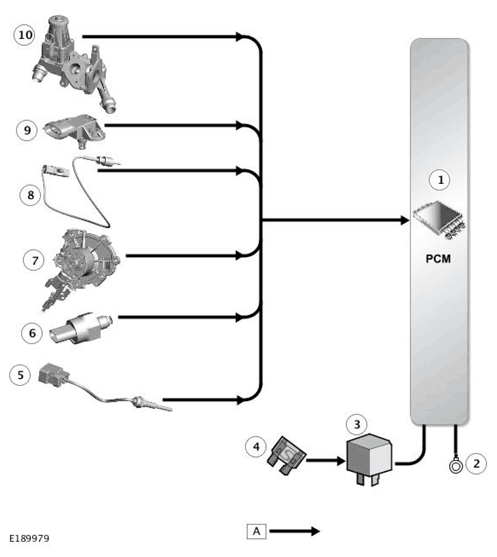

Control Diagram - 5 Of 7
WARNING: This page is about a different variant/trim than selected.
A= HARDWIRED
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Ground |
| 3 | PCM Relay -Llocated in Engine Junction Box (EJB) |
| 4 | Fuse - Located in EJB |
| 5 | Cylinder head temperature sensor |
| 6 | Oil pressure and temperature sensor |
| 7 | Variable coolant pump |
| 8 | Exhaust Gas Recirculation (EGR) exhaust gas temperature sensor - Pre catalytic converter |
| 9 | Mass Air Pressure and Temperature (MAPT) sensor |
| 10 | High Pressure (HP) EGR valve motor |
