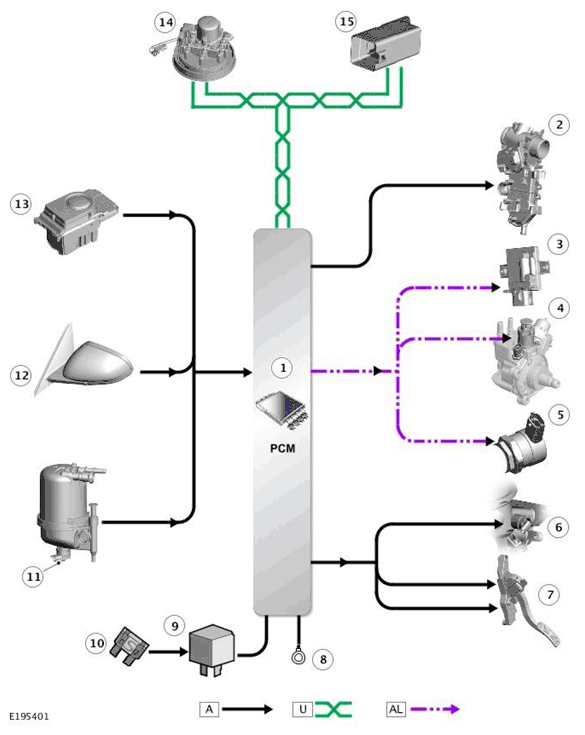

Control Diagram - 2 Of 7
WARNING: This page is about a different variant/trim than selected.
A= HARDWIRED: U= PRIVATE BUS: AL= PULSE WIDTH MODULATION (PWM)
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Low Pressure (LP) Exhaust Gas Recirculation (EGR) valve motor |
| 3 | Fuel Pump Driver Module (FPDM) valve |
| 4 | Fuel metering valve |
| 5 | Fuel Rail Pressure (FRP) control valve |
| 6 | Electric thermostat |
| 7 | Accelerator Pedal Position (APP) sensor |
| 8 | Ground |
| 9 | PCM relay - Located in Engine Junction Box (EJB) |
| 10 | Fuse - Located in EJB |
| 11 | Water In Fuel (WIF) sensor |
| 12 | Ambient Air Temperature (AAT) sensor |
| 13 | Transmission Control Switch (TCS) |
| 14 | Diesel Exhaust Fluid (DEF) tank module |
| 15 | DEF heater control unit |
