Component Location - 4 Of 6 - INGENIUM I4 2.0L Diesel 180PS - EU6
WARNING: This page is about a different variant/trim than selected.

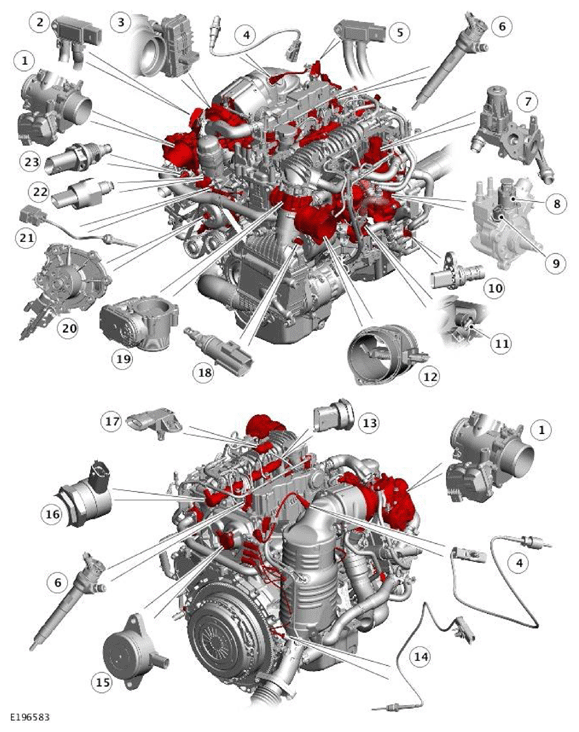

1 of 2

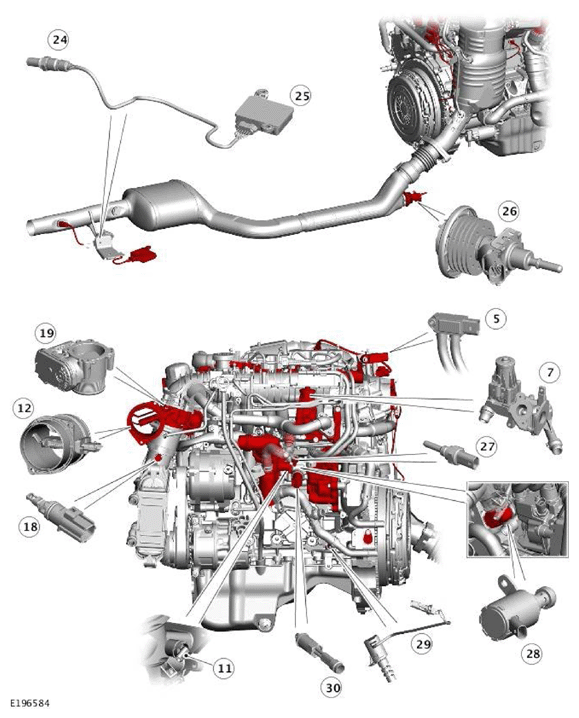

2 of 2
| ITEM | DESCRIPTION |
|---|---|
| 1 | Low Pressure (LP) Exhaust Gas Recirculation (EGR) valve and EGR pressure sensor |
| 2 | LP EGR differential pressure sensor |
| 3 | Variable Geometry Turbine (VGT) vane actuator |
| 4 | Heated Oxygen Sensor (HO2S) |
| 5 | Differential pressure sensor - Diesel Particulate Filter (DPF) |
| 6 | Fuel injector (4 off) |
| 7 | High Pressure (HP) EGR valve and motor |
| 8 | Fuel metering valve |
| 9 | Fuel temperature sensor |
| 10 | Crankshaft Position (CKP) sensor |
| 11 | Electric thermostat and Engine Coolant Temperature (ECT) sensor |
| 12 | Mass Air Flow (MAF)/Intake Air Temperature (IAT) sensor |
| 13 | Fuel Rail Pressure (FRP) sensor |
| 14 | Exhaust gas temperature sensor - Post catalytic converter |
| 15 | Variable Camshaft Timing (VCT) solenoid |
| 16 | FRP control valve |
| 17 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 18 | Charge air cooler temperature sensor |
| 19 | Electric throttle |
| 20 | Variable coolant pump |
| 21 | Cylinder head temperature sensor |
| 22 | Oil pressure and temperature sensor |
| 23 | Charge air temperature sensor |
| 24 | Post Selective Catalyst Reduction (SCR) NOx sensor |
| 25 | Post SCR NOx sensor module |
| 26 | Diesel Exhaust Fluid (DEF) injector |
| 27 | Cylinder block temperature sensor |
| 28 | Piston cooling oil jets solenoid |
| 29 | Oil pressure control solenoid electrical connector |
| 30 | Block heater (if fitted) |
