Component Location - 1 Of 6 - INGENIUM I4 2.0L Diesel - Common Components
WARNING: This page is about a different variant/trim than selected.
NOTE:

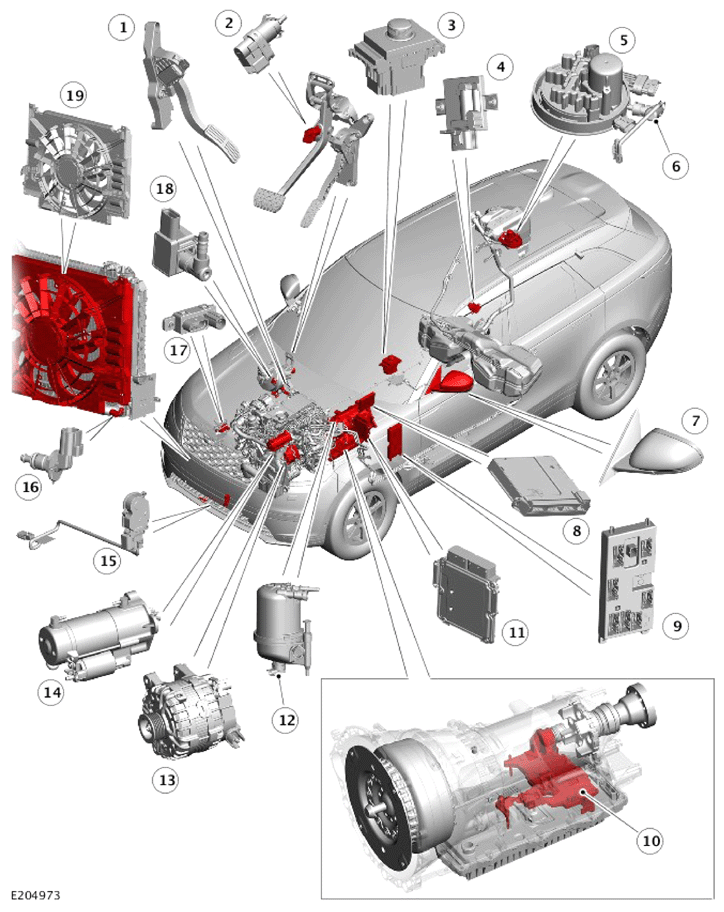

Right Hand Drive (RHD) illustration shown, Left Hand Drive (LHD) illustration is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Accelerator Pedal Position (APP) sensor |
| 2 | Brake pedal switch |
| 3 | Transmission Control Switch (TCS) |
| 4 | Fuel Pump Driver Module (FPDM) |
| 5 | Diesel Exhaust Fluid (DEF) tank module |
| 6 | DEF heater control unit |
| 7 | Ambient Air Temperature (AAT) sensor - Located in left door mirror |
| 8 | HVAC Control Module |
| 9 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 10 | Transmission Control Module (TCM) |
| 11 | Powertrain Control Module (PCM) |
| 12 | Water In Fuel (WIF) sensor |
| 13 | Generator |
| 14 | Starter motor |
| 15 | Active grille air shutter motor |
| 16 | Engine Coolant Temperature (ECT) sensor - Radiator outlet |
| 17 | Glow plug control module |
| 18 | Brake vacuum sensor |
| 19 | Electric cooling fan |
