Rear Silencer (G2020243): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING

General Equipment: 2 post lift
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

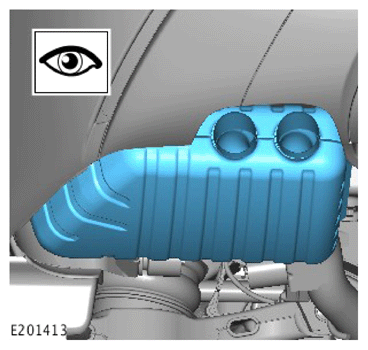

Before removing the rear silencer make sure you make note of the gap between the rear silencer and the rear bumper cover.
CAUTION: Make sure the exhaust system is supported at all times.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

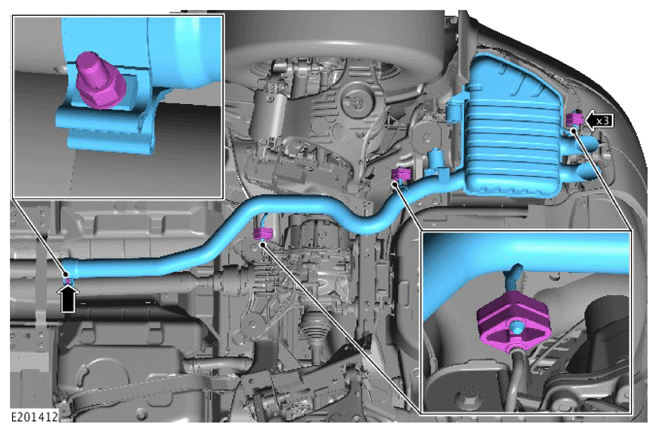

- Release the exhaust clamp nut allowing the removal of the rear silencer assembly from the exhaust system.
- Remove the 3 rear silencer exhaust bracket hangers. With the aid of another technician make sure that the exhaust system is always supported.
- With the aid of another technician remove the rear silencer assembly from the vehicle.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 rear dampers.
