Catalytic Converter To Turbocharger Clamp (G2020244): Removal

WARNING: This page is about a different variant/trim than selected.

Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

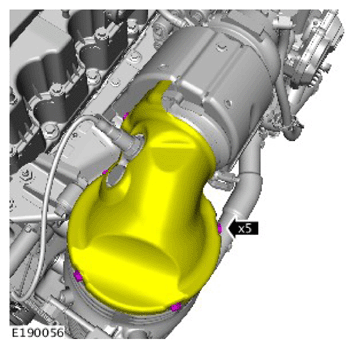

- Remove the heat shield.
- Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

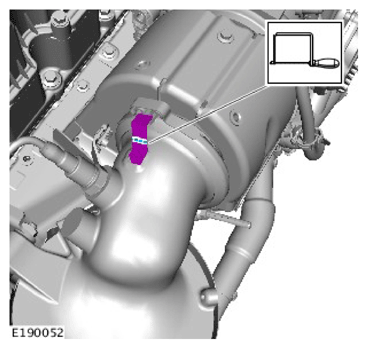

Using suitable cutting/grinding equipment remove the clamp weld at the points illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the clamp.
- Torque : 10 Nm
