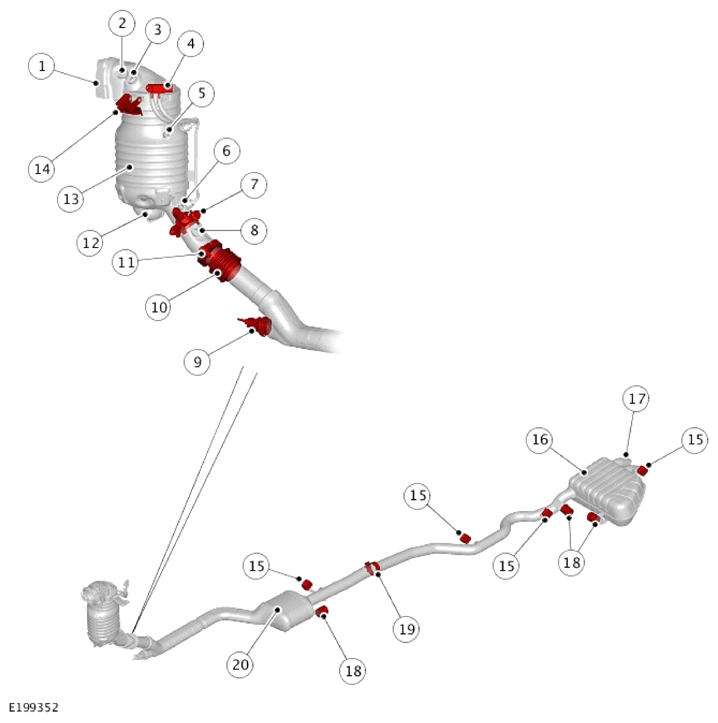

Component Location - 3 Of 3 - Vehicles Equipped With Selective Catalyst Reduction System
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Flange connection to turbocharger |
| 2 | Pre catalyst Heated Oxygen Sensor (HO2S) mounting boss |
| 3 | Pre catalyst exhaust gas temperature sensor mounting boss |
| 4 | Differential pressure sensor |
| 5 | Exhaust gas temperature sensor mounting boss - Diesel Particulate Filter (DPF) inlet |
| 6 | Exhaust gas temperature sensor mounting boss - DPF outlet |
| 7 | Mounting bracket - DPF outlet pipe to transmission |
| 8 | Pre Selective Catalyst Reduction (SCR) NOx sensor mounting boss |
| 9 | Diesel Exhaust Fluid (DEF) injector |
| 10 | Flexible coupling |
| 11 | Flange connection - DPF outlet pipe to flexible coupling |
| 12 | Flange connection - DPF to Low Pressure (LP) Exhaust Gas Recirculation (EGR) cooler |
| 13 | Catalytic Converter and Diesel Particulate Filter (CAT/DPF) assembly |
| 14 | Mounting bracket - CAT/DPF assembly to engine |
| 15 | Mounting rubber (quantity 4) |
| 16 | Rear silencer |
| 17 | Outlet pipe (quantity 2) |
| 18 | Mass damper (quantity 3) |
| 19 | Clamp |
| 20 | SCR catalytic converter |
