Roof Opening Panel Weatherstrip (G2062512): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Remove the roof opening panel.

    Refer to: ROOF OPENING PANEL GLASS

  2. NOTE: Mark the position of the component prior to removal.

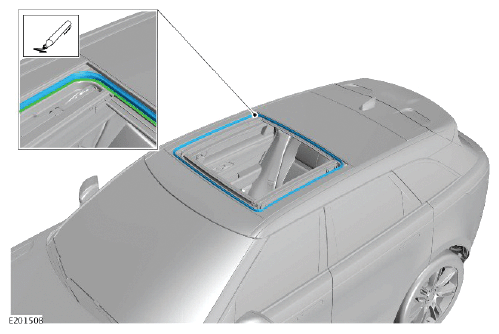

    G12566389Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable non-permanent marker, mark the installed position of the existing weatherstrip.

  3. CAUTION: Discard the component.

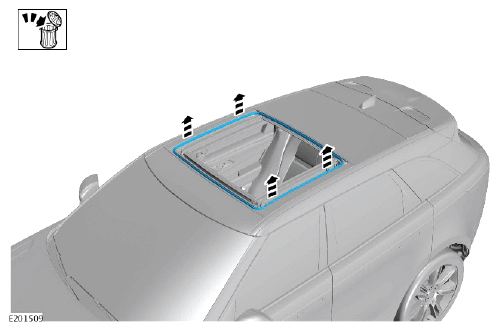

    G12566390Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the roof opening panel weatherstrip.
