Roof Opening Panel Weatherstrip (G2062512): Installation

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

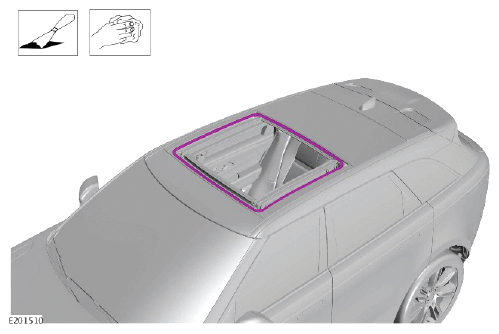

- Remove all residual adhesives from the mating faces.
- Clean the component mating faces.
CAUTION: Do not stretch the roof opening panel closing weatherstrip during installation.

NOTE: Make sure that the component is installed to the noted removal position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

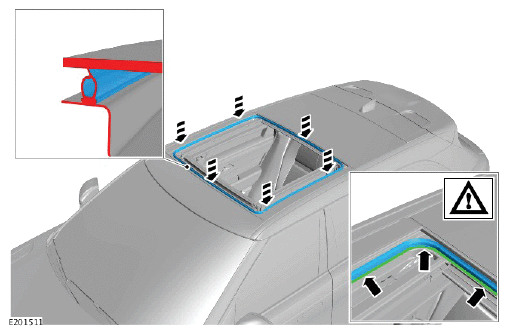

Install the roof opening panel weatherstrip.
Install the roof opening panel.
Refer to: ROOF OPENING PANEL GLASS
