Roof Opening Panel Glass (G2056046): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

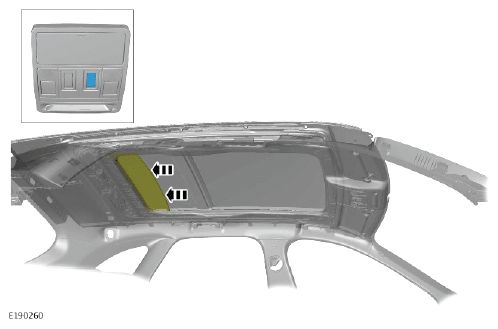

  1. G12566377Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Open the roof opening panel blind.

  2. NOTE: The procedure must be carried out on both sides.
    G12566339Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the roof opening panel inner trims.

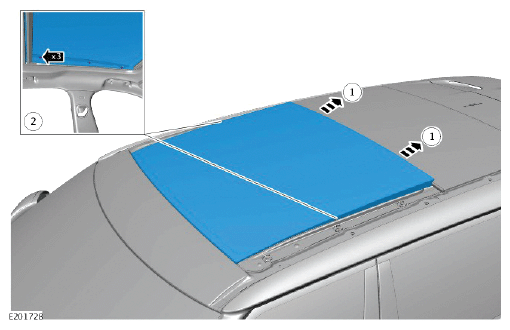

  3. G12566379Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Open the roof opening panel as illustrated.
    • Remove the roof opening panel bolts.
  4. NOTE: This step requires the aid of another technician.
    G12566380Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    With assistance, remove the roof opening panel.
