Roof Opening Panel Glass (G2056046): Installation

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

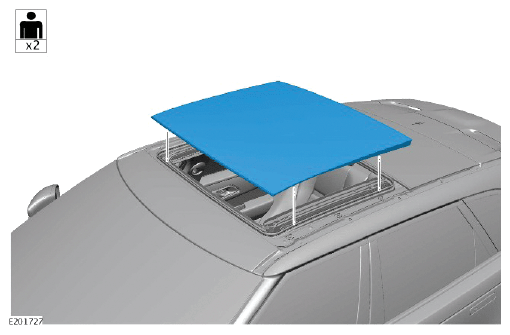

With assistance, install the roof opening panel.
NOTE: Do not fully tighten at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the roof opening panel bolts finger tight.
- Close the roof opening panel.
NOTE:

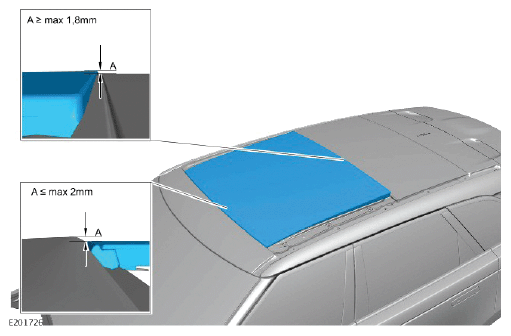

- With the opening panel closed, check the alignment of the opening panel to the roof panel as illustrated.
- The roof opening panel should be positioned in the center of its aperture.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

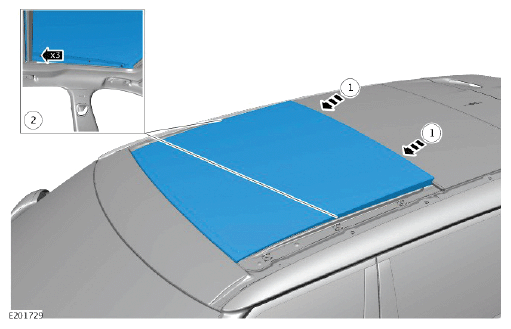

Align the roof opening panel.
NOTE: The step must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts.

Torque : 5.5 Nm
CAUTION:
- Take extra care not to damage the component.
- Make sure that a new component is installed.
NOTE: The step must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

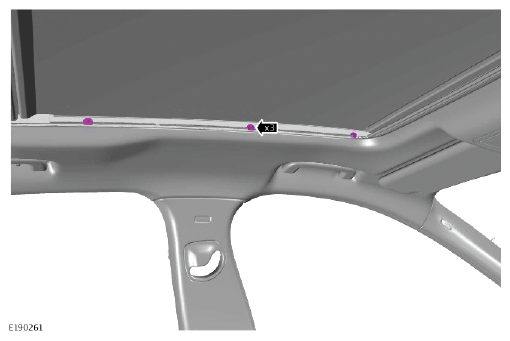

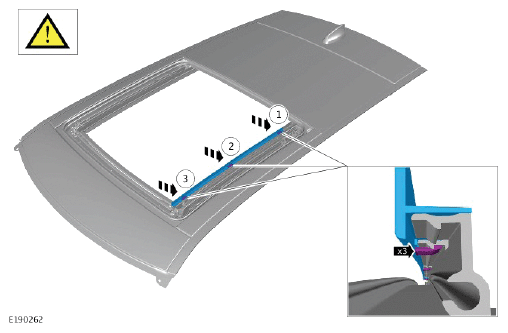

Renew the roof opening panel inner trims.

Renew Part: Roof opening panel inner trim Quantity: 2 .
