Roof Opening Panel Frame (G2062511): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

Remove the roof opening panel.
Refer to: ROOF OPENING PANEL GLASS
Remove the roof opening panel blind.
Refer to: ROOF OPENING PANEL BLIND
NOTE: The procedure must be carried out on both sides.

Remove the roof mouldings.

Refer to: ROOF PANEL MOULDING
NOTE:
- If equipped.
- The procedure must be carried out on both sides.
Remove the roof rails.

Refer to: ROOF RAIL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

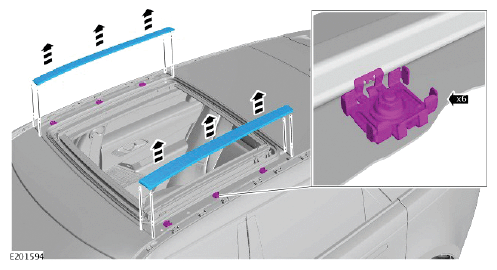

Remove both roof opening panel side finishers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

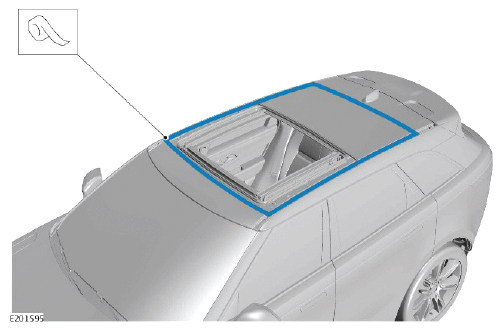

Apply masking tape to protect paintwork.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

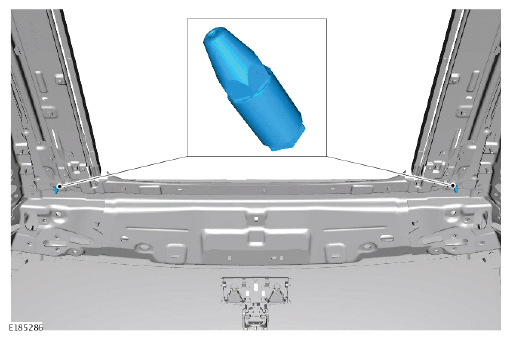

Remove the guide pins.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

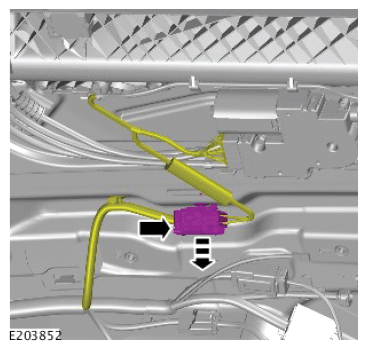

- Disconnect the electrical connector.
- Detach the clip from the roof panel.
WARNING: Wear safety goggles, protective gloves and ear protectors.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

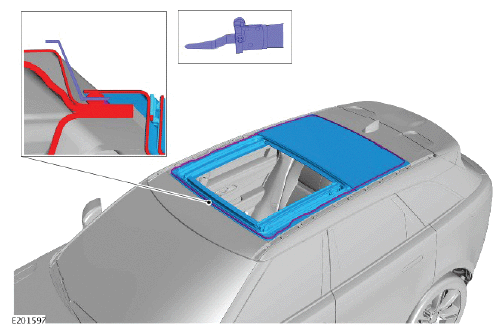

Carefully cut through the sealant using a glazing knife.
NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

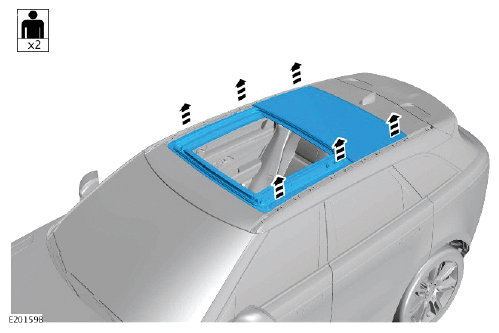

With assistance, remove the roof opening panel assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

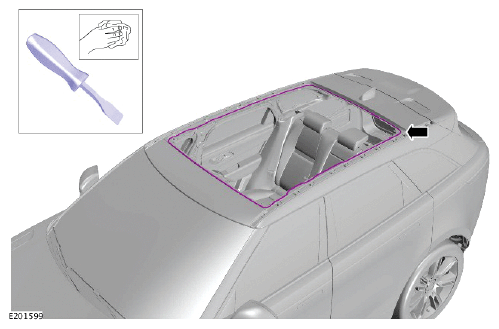

Remove all residual adhesives from the mating faces.
CAUTION: Make sure that all residual spacer material is removed from the body.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

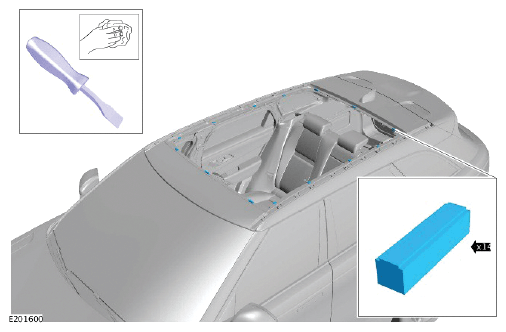

Remove the spacers.
