Roof Opening Panel Air Deflector (G2056047): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure the net deflector folds protrude rearwards when closing the roof opening panel glass. If the net deflector is folded forwards water leakage from the roof panel may occur.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

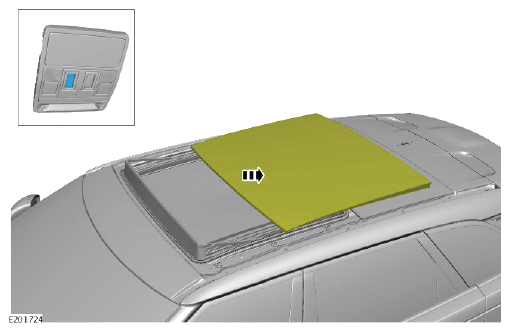

Open the roof opening panel to the most fully open position.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 retaining screws.

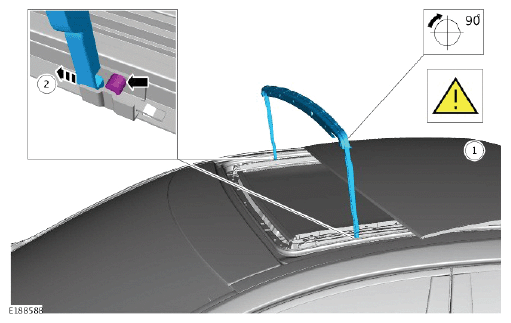

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the air deflector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the air deflector.
NOTE: Do not disassemble further if the component is removed for access only.

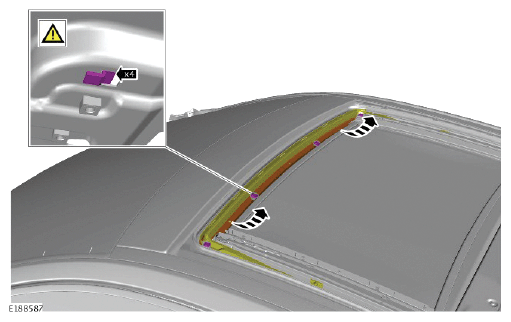

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 7 retaining clips.
- Remove the shield.
