Roof Opening Panel Air Deflector (G2056047): Installation
WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

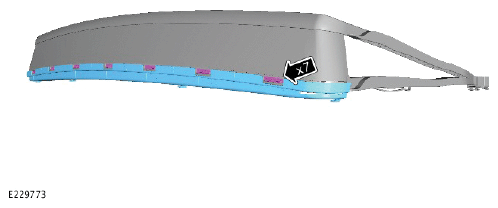

- Locate the 7 retaining clips.
- Install the shield.
- Install the air deflector.
- Secure the air deflector.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Install and tighten the 3 retaining screws.
Torque
: 3 Nm
- Close the roof opening panel.
