Roof Opening Panel Alignment (G2062510): Check

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure contains illustrations showing certain components removed to provide extra clarity.

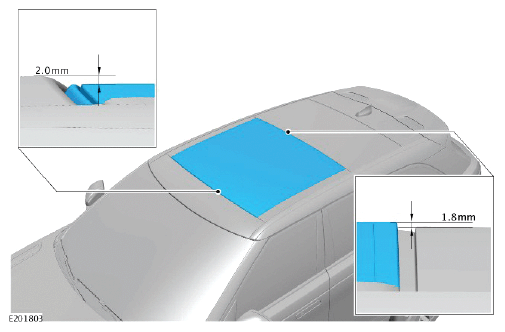

NOTE: With the opening panel closed, check the alignment of the opening panel to the roof panel as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Check the alignment of the roof opening panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

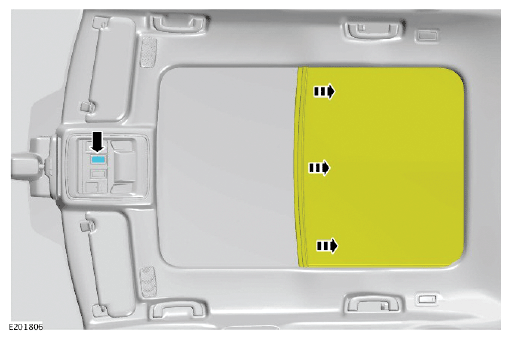

Open the roof opening panel blind.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

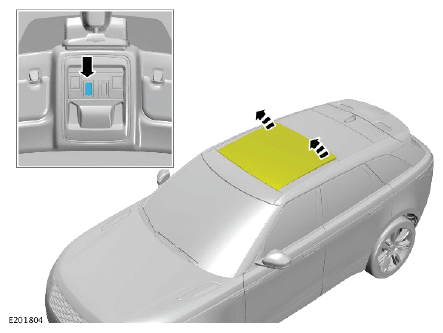

Open the roof opening panel.
NOTE: The procedure must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

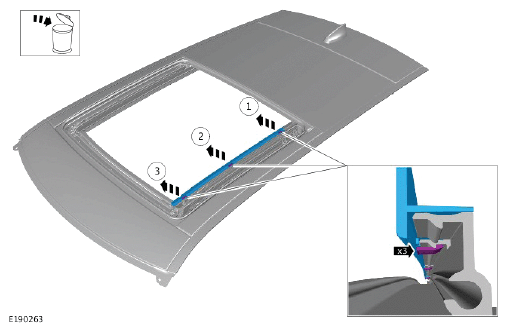

Remove and discard the roof opening panel inner trims.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

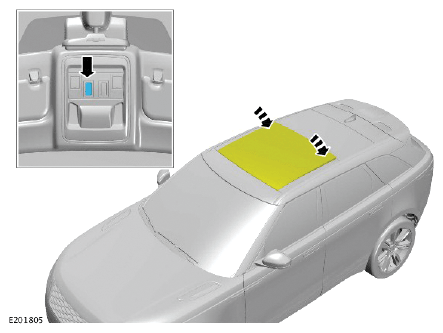

Close the roof opening panel.
NOTE: The step must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

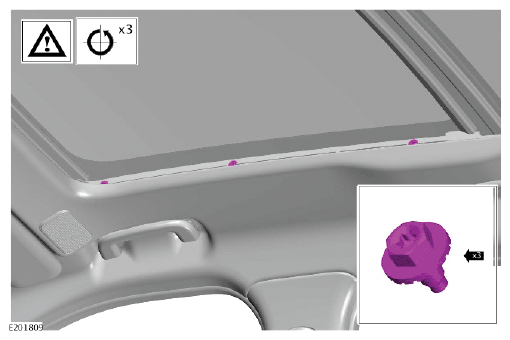

Loosen, but do not remove the bolts.
CAUTION: Care must be taken not to damage the component.

NOTE: The roof opening panel should be positioned in the center of its aperture.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Align the roof opening panel.
NOTE:
- This step requires the aid of another technician.
- The step must be carried out on both sides.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

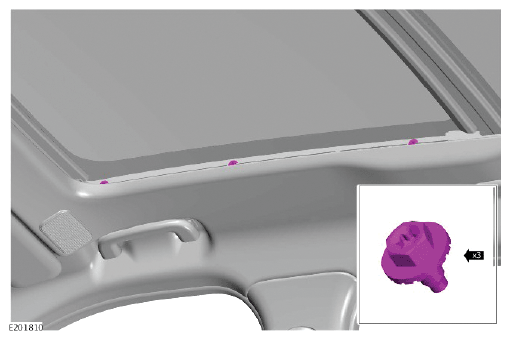

- Install and tighten the bolts.
  Torque : 5.5 Nm
CAUTION:
- Take extra care not to damage the component.
- Make sure that a new component is installed.
NOTE: The step must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew the roof opening panel inner trims.

Renew Part: Roof opening panel inner trim Quantity: 2 .
