Roof Blind Assemblies
WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

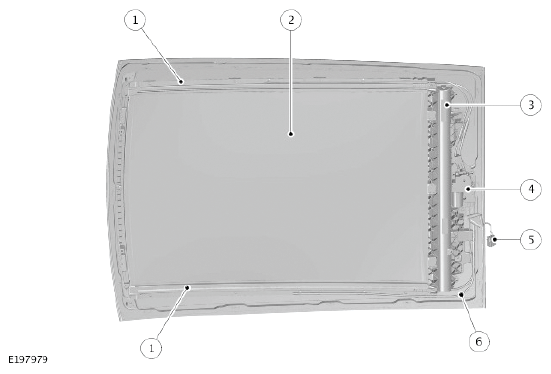

Roof Blind Assembly - Vehicles With Glass Roof Panel
| ITEM | DESCRIPTION |
|---|---|
| 1 | Roof blind rail (2 off) |
| 2 | Roof blind |
| 3 | Roof blind cassette |
| 4 | Roof blind motor |
| 5 | Roof blind motor electrical connector |
| 6 | Glass roof panel frame |

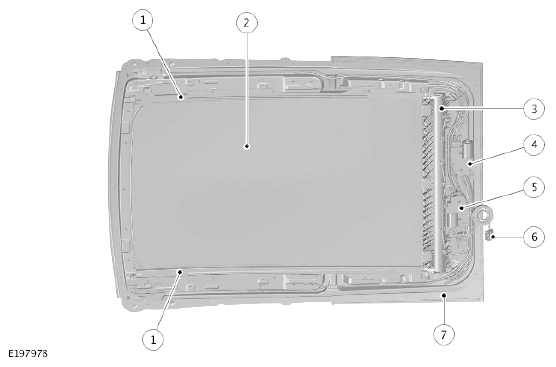

Roof Blind Assembly - Vehicles With Roof Opening Panel
| ITEM | DESCRIPTION |
|---|---|
| 1 | Roof blind rail (2 off) |
| 2 | Roof blind |
| 3 | Roof blind cassette |
| 4 | Roof opening panel motor |
| 5 | Roof blind motor |
| 6 | Roof opening motor and roof blind motor electrical connector |
| 7 | Roof opening panel frame |
Both type of glass roof panel has a same roof blind assembly. The roof blind assembly is fixed to the main frame with 14 bolts.
The roof blind assembly contains the following:
- Two roof blind rails
- Roof blind cloth
- Roof blind cassette
