Control Switches
WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

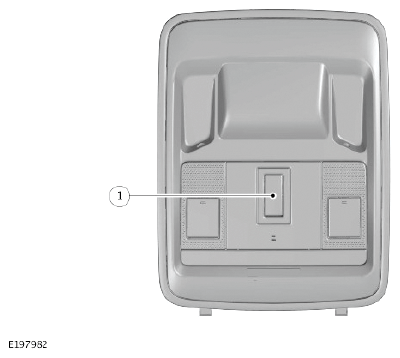

Roof Blind Switches - Vehicles With Glass Roof Panel
| ITEM | DESCRIPTION |
|---|---|
| 1 | Roof blind switch |

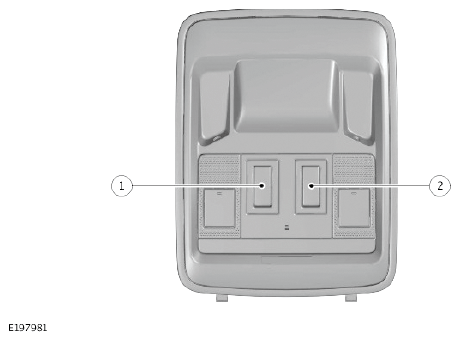

Roof Blind Switch And Roof Opening Panel Switch - Vehicles With Roof Opening Panel
| ITEM | DESCRIPTION |
|---|---|
| 1 | Roof opening panel switch |
| 2 | Roof blind switch |
The roof opening panel and the roof blind are operated through the two-way rocker switches located in the front overhead console. The switches receive battery supply from the Body Control Module/Gateway Module (BCM/GWM) assembly and transmit the signals to the roof opening panel control module on hardwired connection.
The roof opening panel switch and the roof blind switch have two steps on both directions
- Step 1: Manual operation
- Step 2: Automatic operation.
