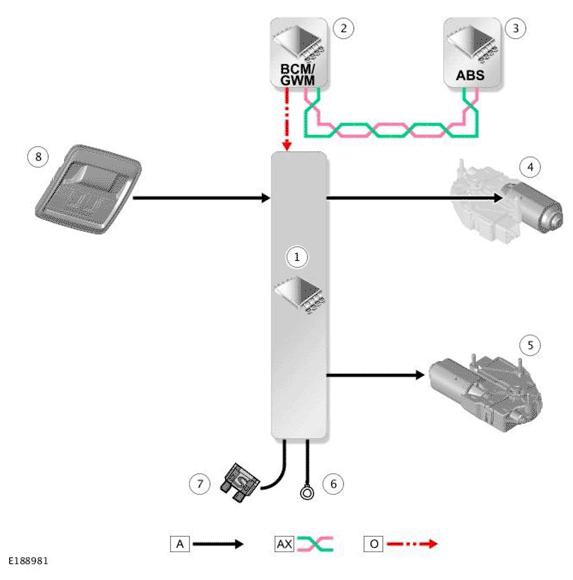

Control Diagram
WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AX = FLEXRAY BUS; O = LOCAL INTERCONNECT NETWORK (LIN) BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Roof opening panel control module |
| 2 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 3 | Anti-lock Brake System (ABS) control module |
| 4 | Roof opening panel blind motor |
| 5 | Roof opening panel motor - If equipped |
| 6 | Ground |
| 7 | Power supply |
| 8 | Roof opening panel blind and roof opening panel switches - overhead console |
