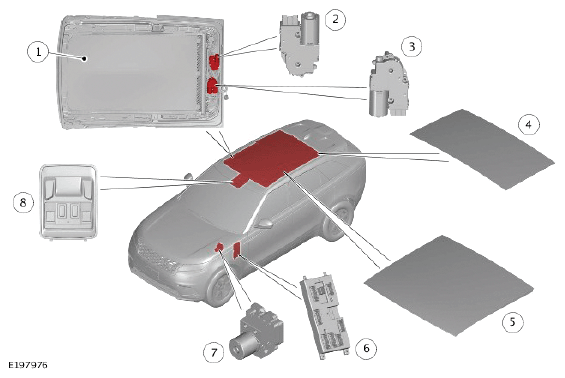

Component Location - 2 Of 2 - Vehicles With Roof Opening Panel
WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Roof blind assembly |
| 2 | Roof opening panel motor |
| 3 | Roof blind motor |
| 4 | Rear glass roof panel |
| 5 | Roof opening panel |
| 6 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 7 | Anti-lock Brake System (ABS) control module |
| 8 | Roof blind switch and roof opening panel switch - Overhead console |
