Hood Latch Panel (G2042263): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the headlamps.
Refer to: HEADLAMP ASSEMBLY

The following step(s) applies to:

Vehicles with 2.0L engine

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

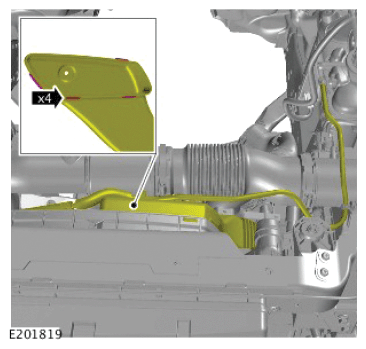

Release the air intake duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the air intake duct.

The following step(s) applies to:

Vehicles with 3.0L engine

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

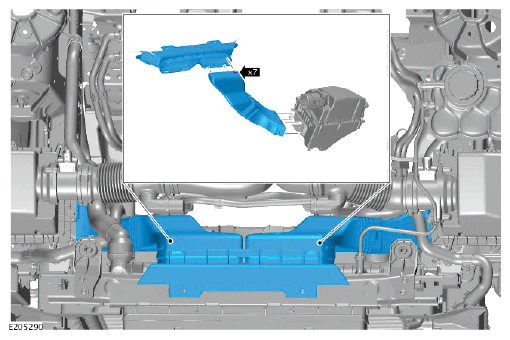

Remove the air intake ducts.

The following step(s) applies to:

All vehicles

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

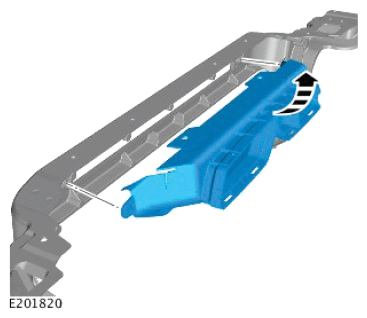

Remove the dirty air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

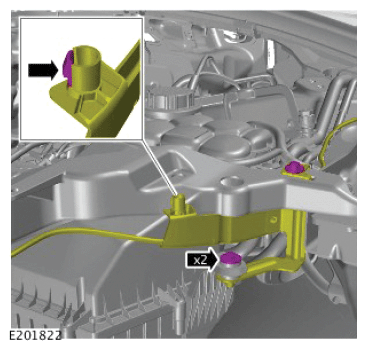

Release the air cleaner mount bracket.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

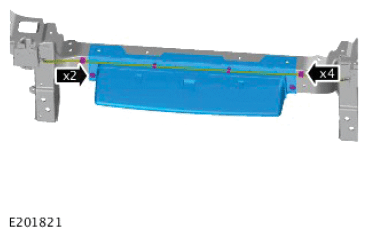

Remove the air deflector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

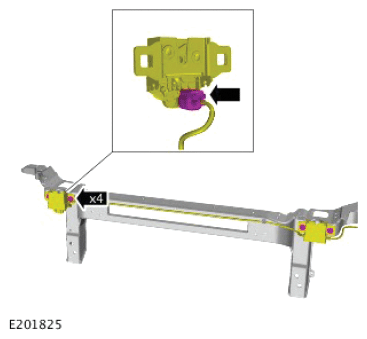

Remove the hood latches and position aside.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

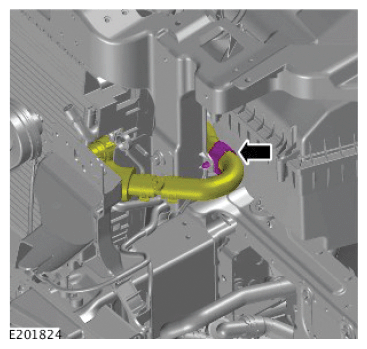

Release the hose and position aside.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

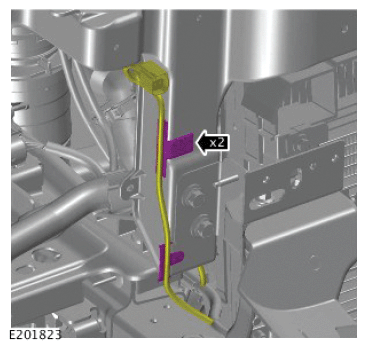

Release the wiring harness.
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

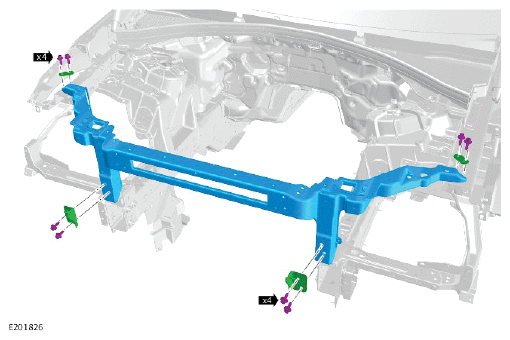

Remove the hood latch panel.
NOTE:
- Only carry out the following step(s) if a new component is to be installed.
- The step must be carried out on both sides.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

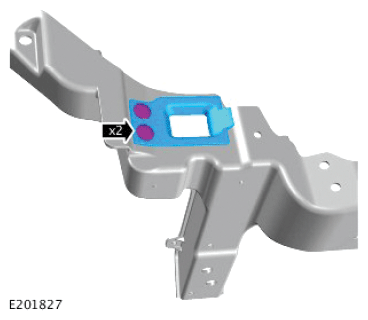

Remove the plastic inserts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

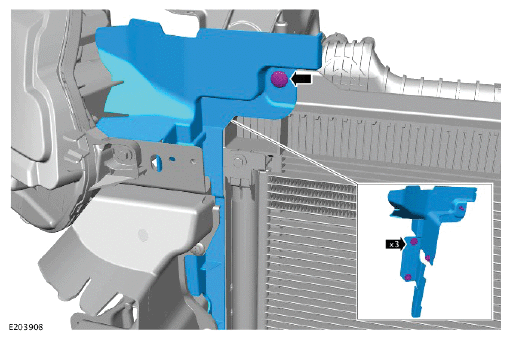

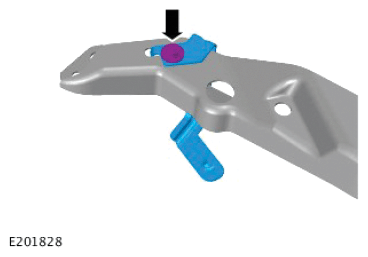

Remove the air cleaner mount bracket.
