Hood (G2318622): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure contains illustrations showing certain components removed to provide extra clarity.

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
The hood is manufactured from aluminum.

Open the hood.
NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

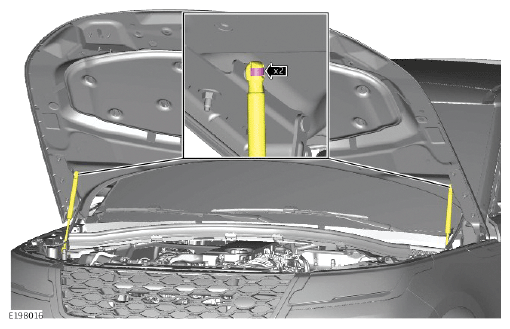

Release the 2 support struts.
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

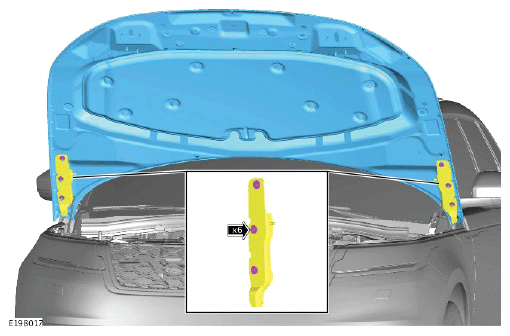

- Remove the hood.
NOTE: Only complete the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

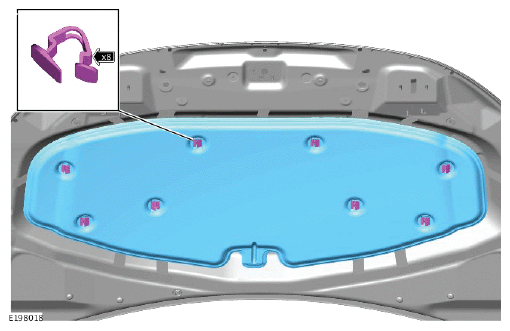

Remove the hood insulation pad.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

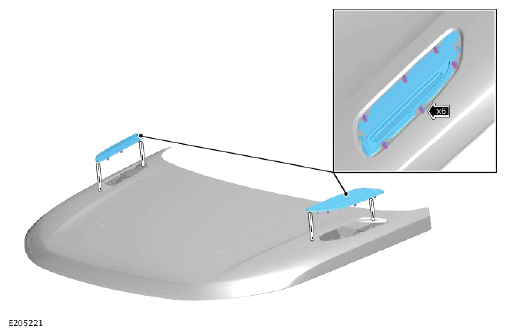

Remove the hood finishers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

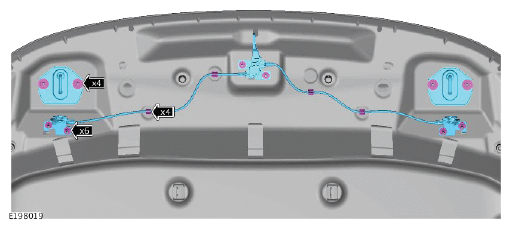

- Remove the hood latches.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

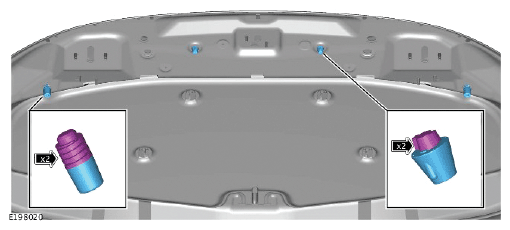

Remove the 4 rubber bumpers.
