Headlamp Mounting Bracket (G1888168): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the headlamp assembly.
Refer to: HEADLAMP ASSEMBLY
Remove the air cleaner.
Refer to: AIR CLEANER (INGENIUM I4 2.0L Diesel, Removal and Installation).

Refer to: AIR CLEANER (INGENIUM I4 2.0L Petrol, Removal and Installation).

Refer to: LEFT AIR CLEANER (TDV6 3.0L Diesel, Removal and Installation).

Refer to: RIGHT AIR CLEANER (TDV6 3.0L Diesel, Removal and Installation).

Refer to: LEFT AIR CLEANER (V6 S/C 3.0L Petrol, Removal and Installation).

Refer to: RIGHT AIR CLEANER (V6 S/C 3.0L Petrol, Removal and Installation).

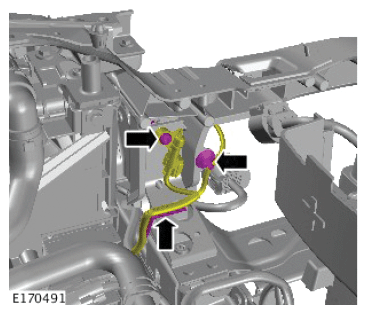

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the washer hose retaining clips.
- Reposition the washer hose away from the headlamp mounting bracket.

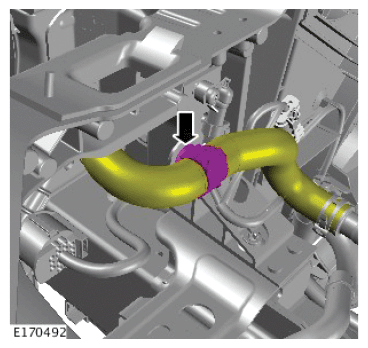

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the crash sensor retaining bolt.
NOTE: Left side only.

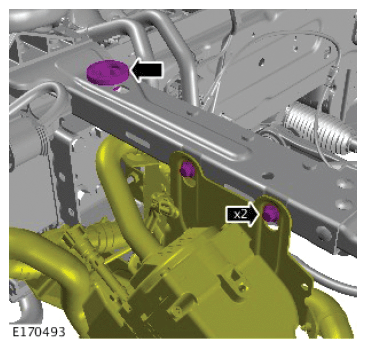

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Left side only.

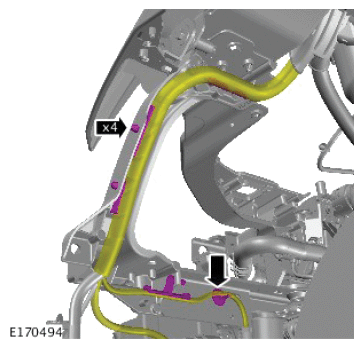

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Left side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

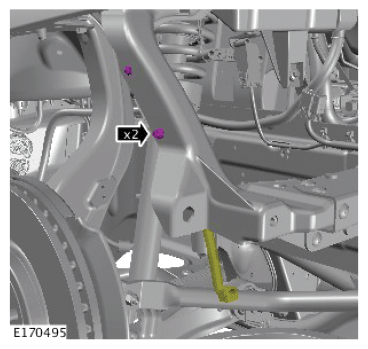

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm

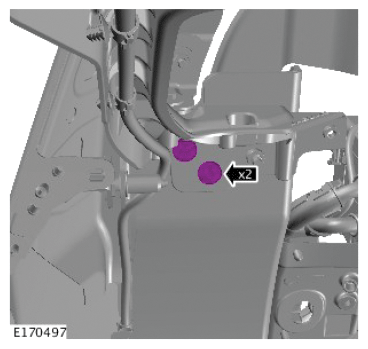

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

M8: 25 Nm

M6: 10 Nm

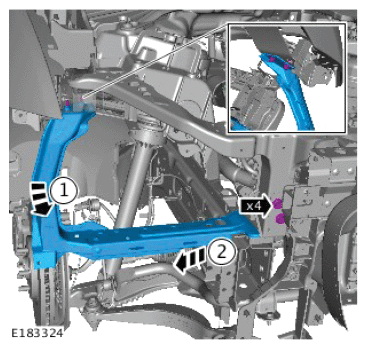

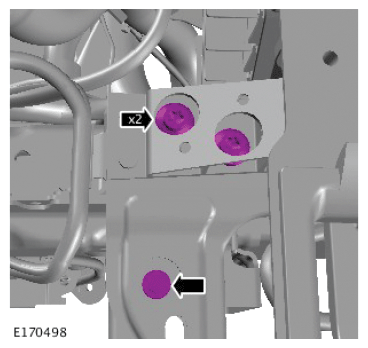

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

M8: 25 Nm

M6: 10 Nm
