Front Wheel Arch Liner (G2729322): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for left side components, right side components are similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the wheel and tire.
Refer to: WHEEL AND TIRE

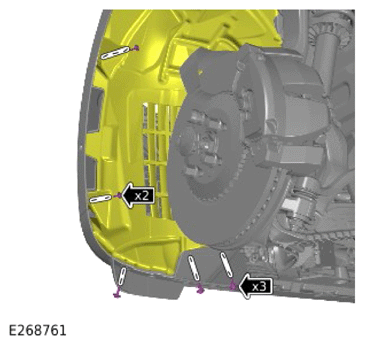

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 screws.
- Remove the 3 bolts.
- Release the front section of the wheel arch liner.

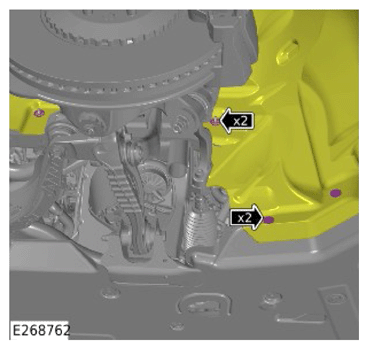

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the 2 push on steel clips.
- Remove the 2 bolts.
- Release the rear section of the wheel arch liner.

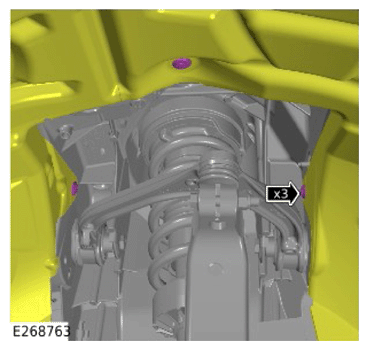

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 fasteners.
- Release the center section of the wheel arch liner.

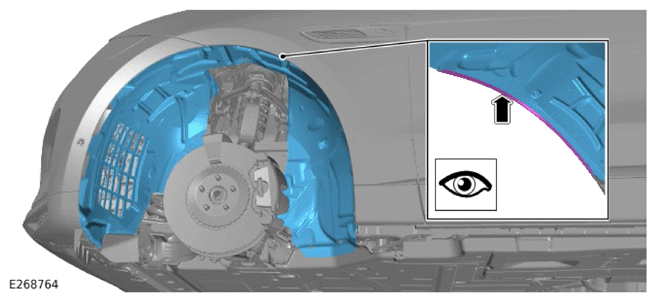

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the front wheel arch liner from the front fender.
- Remove the front wheel arch liner.
