Front CROSSMEMBER Support Bracket (G1888170): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: HEADLAMP ASSEMBLY
  2. Refer to: FRONT CROSSMEMBER

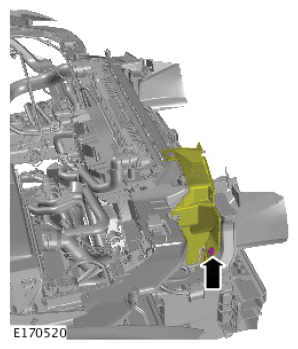

  3. NOTE: Right hand shown, left hand similar.
    G12563111Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

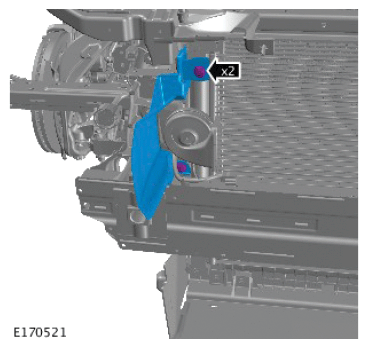

  4. NOTE: Right hand shown, left hand similar.
    G12563112Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

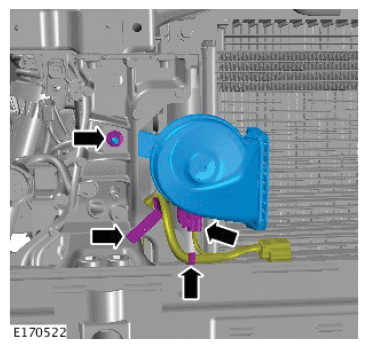

  5. G12563113Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10 Nm

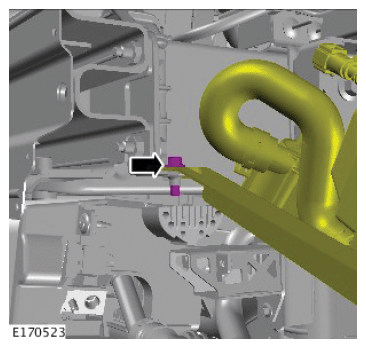

  6. NOTE: left side only.
    G12563114Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10 Nm

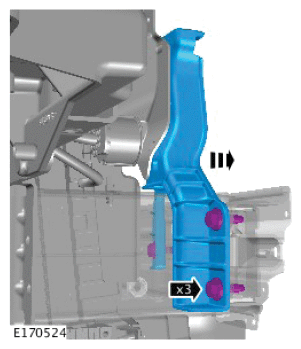

  7. G12563115Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 25 Nm
