Front CROSSMEMBER (G1888175): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: HEADLAMP ASSEMBLY

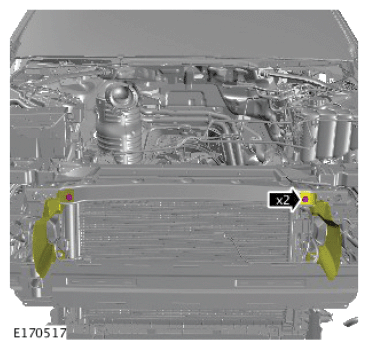

  2. G12563106Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

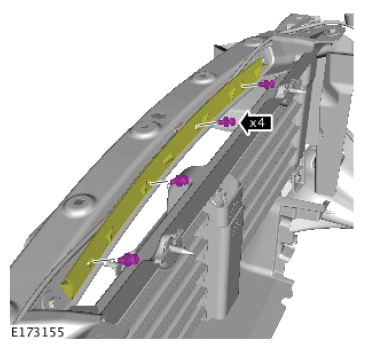

  3. G12563107Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

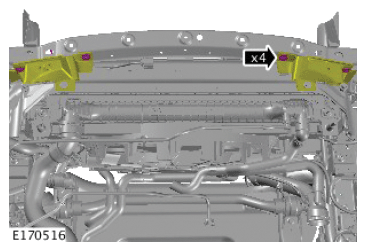

  4. G12563108Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10.5 Nm

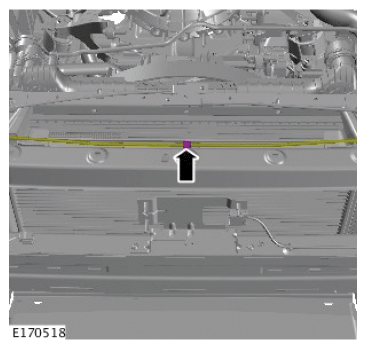

  5. G12563109Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

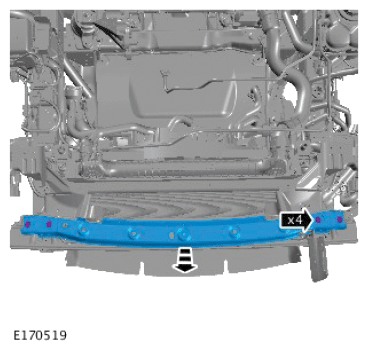

  6. G12563110Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 25 Nm
