Cowl Panel (G2056049): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Always protect paintwork and windows when removing exterior components.

Remove the windshield wiper arms.
Refer to: WINDSHIELD WIPER PIVOT ARM
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the seal.
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

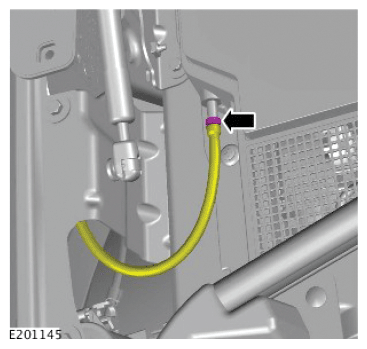

Disconnect the heated windshield washer hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

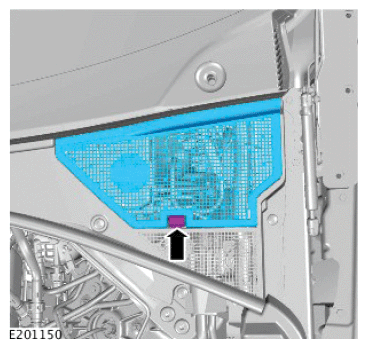

Remove the access cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

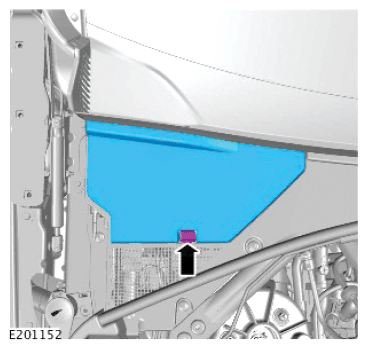

Remove the access cover.
NOTE: Use a suitable trim tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

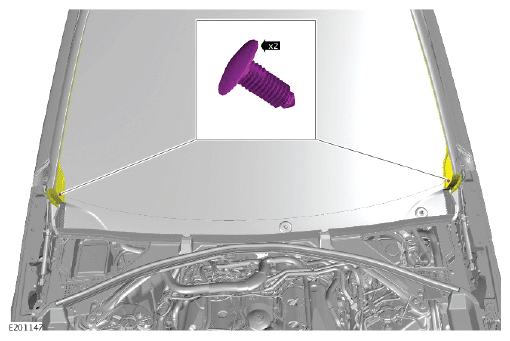

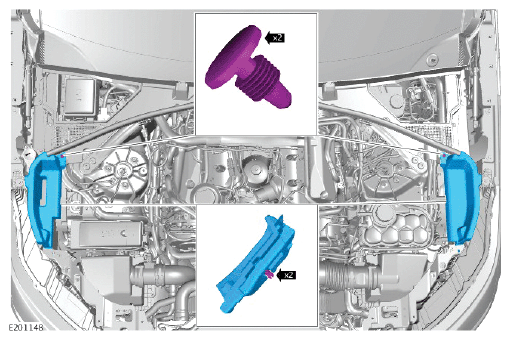

- Remove the clips.
- Carefully release the foam retainers, remove the foam.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

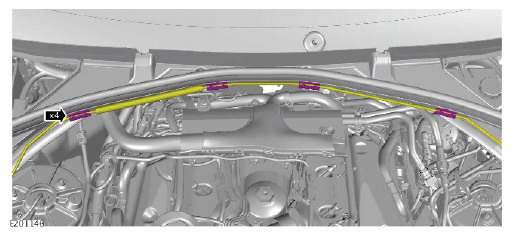

Release the hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

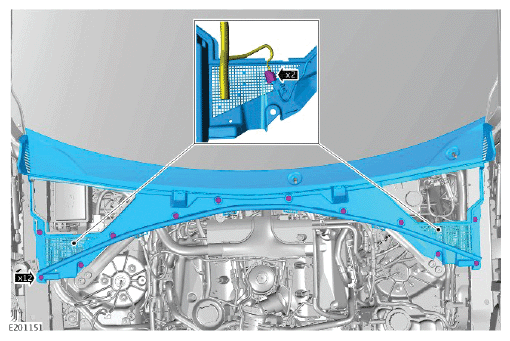

- Disconnect the 2 electrical connectors.
- Remove the 12 retaining clips.
- Remove the cowl panel.
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

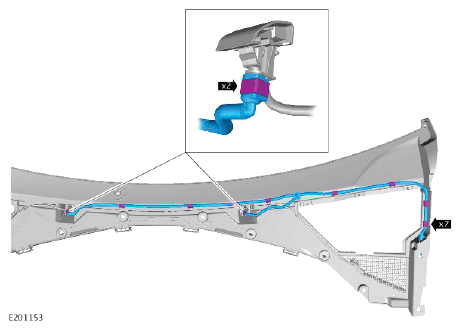

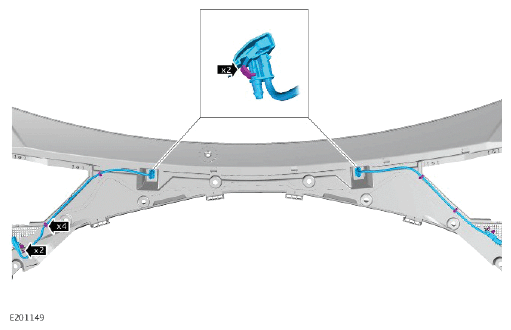

- Disconnect the windshield washer hose.
- Release the hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 heated windshield washer jets.
