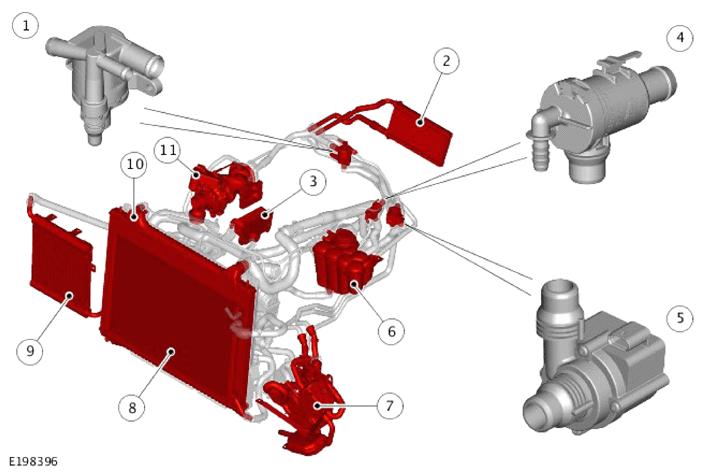

Component Location - 1 Of 3 - Front View

G14285959Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Separator
2 Heater core
3 Oil cooler
4 Thermostatic valve - Automatic Transmission Fluid (ATF) cooler
5 Auxiliary coolant pump
6 Coolant expansion tank
7 Fuel Fired Booster Heater (FFBH) - If equipped
8 Charge air radiator
9 Auxiliary radiator
10 Radiator
11 Turbocharger
