Brake Vacuum Pump - V8 S/C 5.0L Petrol (G2264160): Installation

Install a new vacuum pump seal.
Renew Part: Brake vacuum pump seal Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

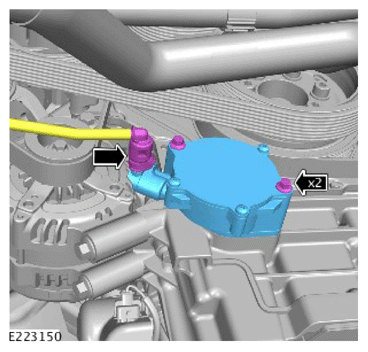

- Install the brake vacuum pump.
- Install and tighten the 2 M6 x 65 bolts.
  Torque : 12 Nm
- Connect the vacuum hose.
Install the undershield.
Refer to: ENGINE UNDERSHIELD
Fill the engine with oil.
Refer to the appropriate Engine System article
