Brake Pedal And Bracket (G2133019): Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains illustrations for left hand drive vehicles, right hand drive vehicles are similar.
  1. Remove the stoplamp switch.

    Refer to: STOPLAMP SWITCH

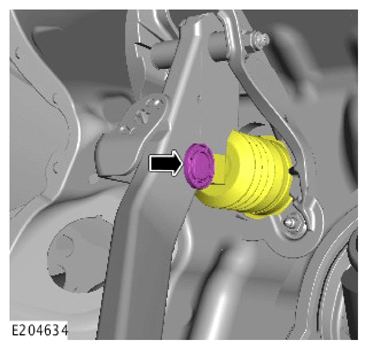

  2. Remove and discard the brake booster push rod retaining clip.
    G14279968Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

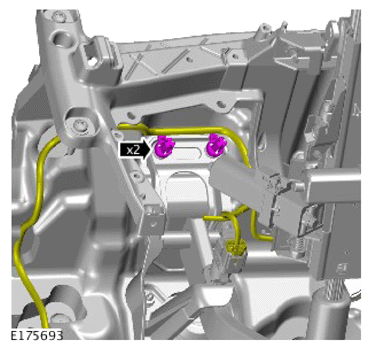

  3. Release the stoplamp switch harness clips and reposition the harness away from the brake pedal.
    G14279969Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

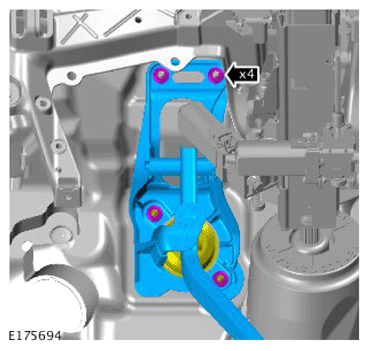

  4. G14279970Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove and discard the brake pedal mounting nuts.
    • Remove the brake pedal and bracket assembly from the vehicle.
