Brake Fluid Reservoir (G2131603): Removal

WARNING: Do not allow dirt or foreign liquids to enter the reservoir. Use only new brake fluid of the correct specification from airtight containers. Do not mix brands of brake fluid as they may not be compatible.

CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the cowl panel.
Refer to: COWL PANEL

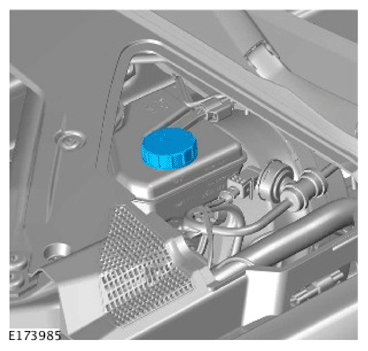

Using a suitable suction device, drain the fluid reservoir.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Disconnect the electrical connector.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the fluid reservoir.
CAUTION: Discard the seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the seals.

Renew Part: Brake fluid reservoir kit Quantity: 2 .
