Brake Fluid Reservoir (G2131603): Installation

  1. CAUTION: Make sure that new seals are installed.
    G11674916Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install new seals.

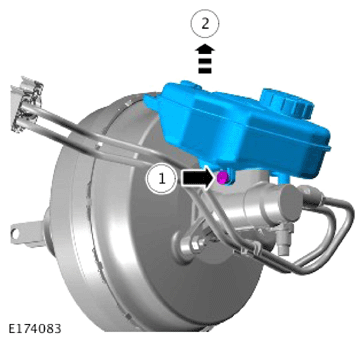

  2. G14279961Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the fluid reservoir.

      Torque  : 4 Nm

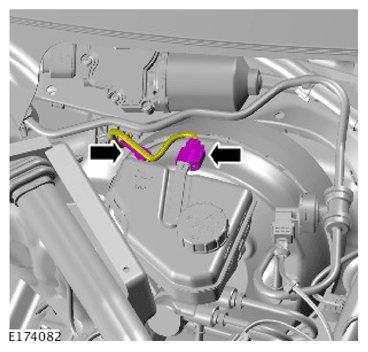

  3. Connect and secure the electrical connector.
    G14279960Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

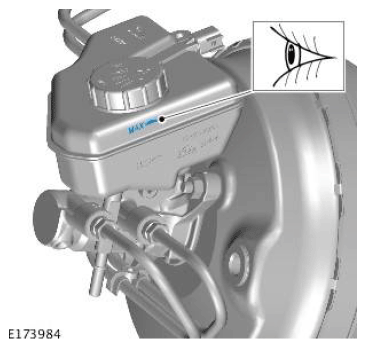

  4. Fill the brake fluid reservoir to the MAX mark.
    G12008478Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  5. Install the cowl panel.

    Refer to: COWL PANEL

  6. Bleed the brake system.

    Refer to: BRAKE SYSTEM BLEEDING
